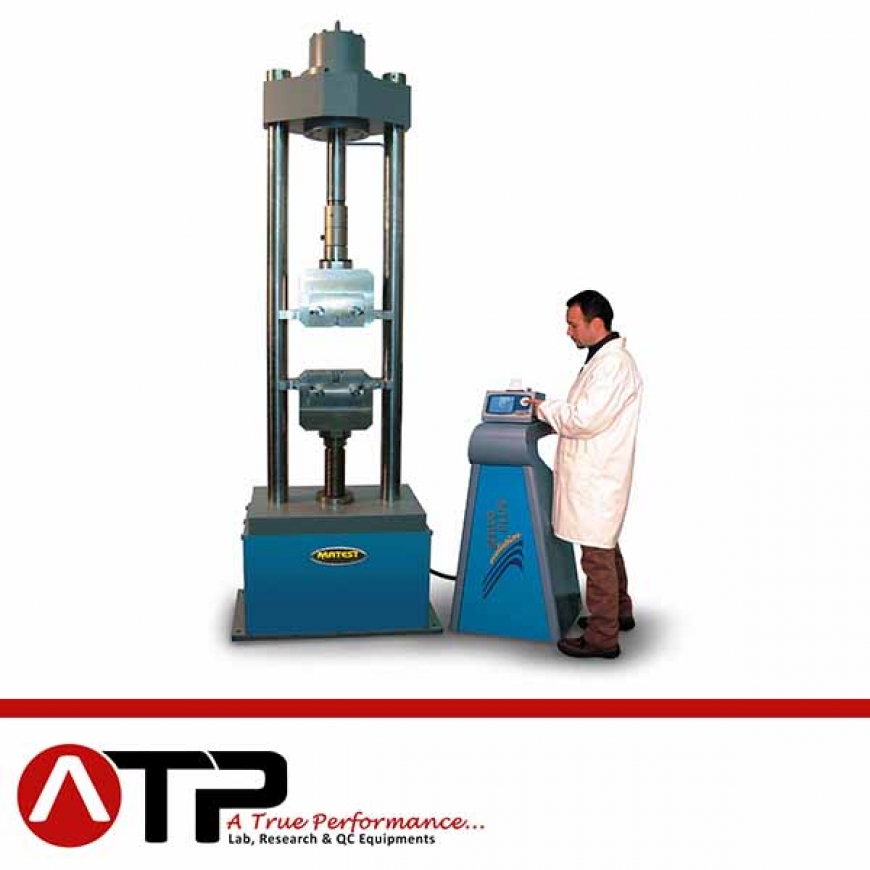

Hydraulic Servo Controlled Machine, 600 kn with Touch Screen Control Unit for Static Tensile Tests

The machine basically consists of :
– Sturdy loading frame with electric cell for load reading and built in piston displacement transducer
– Hydraulic unit and Servo-Plus Evolution Touch-Screen system.

The frame is designed to perform tensile tests using the jaws placed in the clamping heads, in accordance with the mentioned International Standards.
The hydraulic servo-controlled unit regulates the load rate. An emergency device allows to stop the machine at any moment as per CE Safety Standards.
The lower tensile head can be adjusted in height through an electric motor, for an easier positioning of the specimen according to its length. Jaws are pneumatically activated through a compressor (accessory mod. V206).
The machine is supplied complete with loading frame and control console, while PC (H009-01), software (H009N), jaws, printer and extensometers (H014 to H014-10) are optional accessries and have to be ordered separately according to the operator needs.

TECHNICAL SPECIFICATIONS:
– Capacity: 600kN
– Distance between jaws min/max: 100/800mm

– Suitable distance between jaws for test: 450mm
– Upper hydraulic loading piston: stroke 300mm
– Lower tensile head: stroke 400mm
– Ideal distance between jaws for tests: 500mm
– Daylight between vertical columns: 440mm
– Load reading: Sensing by load cell. Resolution 0,01% U.V.
– Accuracy: Class 1 EN 10002-2
– Stroke reading: Sensing by linear transducer. Resolution 0,01mm
– Needed height: 3200mm
– Frame dimensions: 860x480x3000mm
– Console dimensions: 610x630x1600mm

Total weight 2200kg approx.
Power supply 400V 3ph+neutral+earth 50Hz 2kW
