| Model |
Vu-Con |
|---|---|
| Standard |
ASTM C1383 |

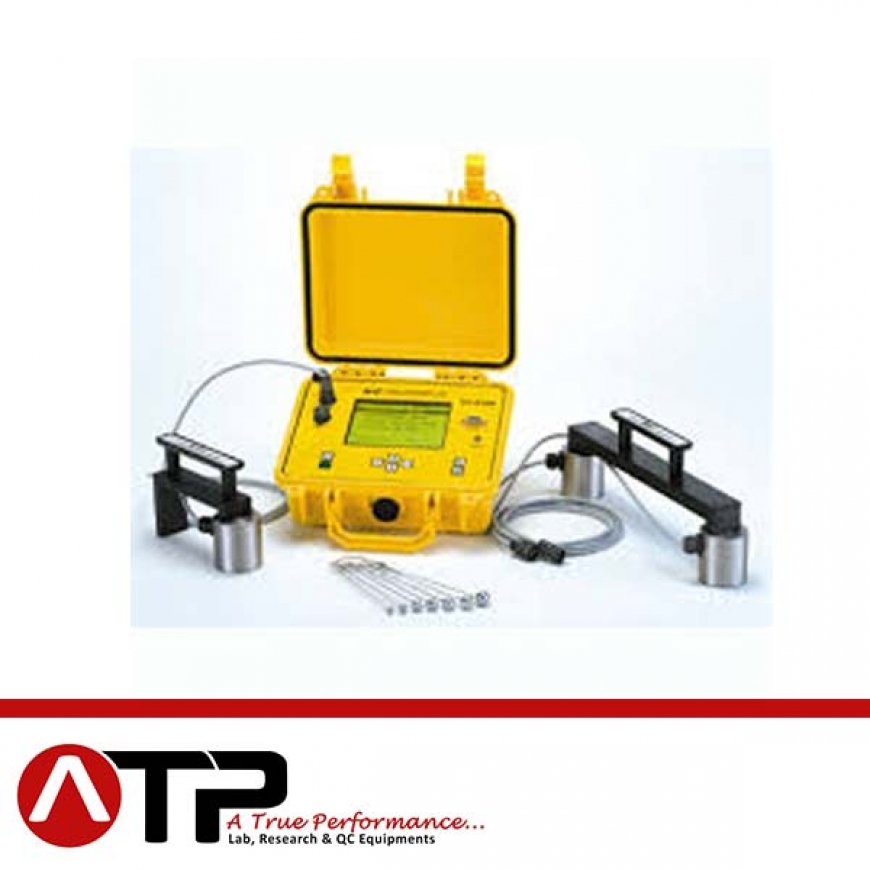

Impact Echo System
Impact Echo System
Impact Echo System for measuring the thickness and quality of concrete.
Features & Benefits
- Accurately determines concrete thickness without drilling cores or using similar d estructive techniques.
- Quickly locates delaminations and voids in concrete slabs & structures where access is limited to a single side.
- Rugged design for field use.
- Rapid results within seconds at the jobsite.
- Large easy to view display for data analysis on site and in daylight.
- Data can be stored and uploaded to a PC for later analysis and inclusion in reports.
- Conforms to ASTM C-1383.
Specifications
|
Instr. Weight: |
6 lbs. (2.75Kg) |
|
Ship Weight: |
17 lbs. (7.7 Kg) |
|
Dimensions: |
4.5 x 8.5 x 10.5 (114.3mm x 223.5mm x 267mm) |
|
Freq. Range: |
0-50khz |
|
Impactor Sizes: |
6, 8, 10, 12, 14, & 16mm |
|
Gain Selection: |
0.1, 0.5, 1, 2.5, 5, 10, 25 & 50 |
|
Battery: |
14.4 Volt. 4-8 hours continuous use |
|
Display: |
320 by 240; backlit for daylight use |
|
Storage: |
200 plus readings |
|
Software: |
Windows® Compatible |
|
Temperature: |
0 – 50°C |
Additional information
