| Model |
Equotip 550 Leeb |
|---|---|
| Standard |
ASTM A 956, ASTM E 140, ASTM A 370, ISO 16859, DIN 50156, GB/T 17394, JB/T 9378 |

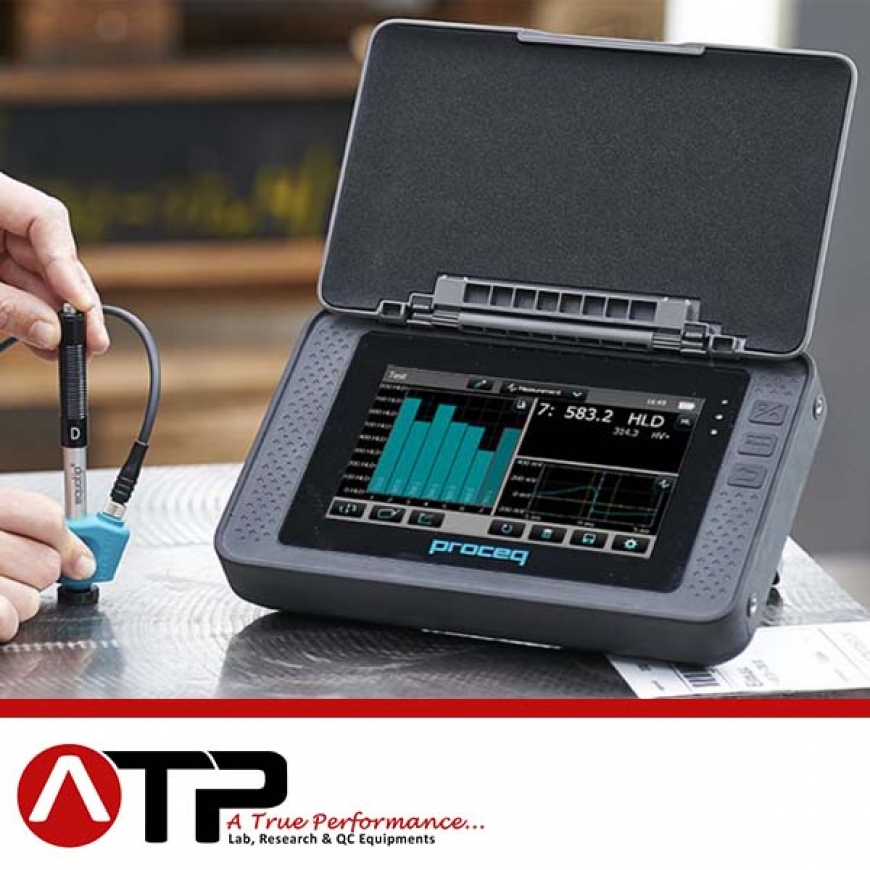

Leeb Hardness Tester
Versatile Leeb hardness tester for on-site testing of heavy, large or installed parts. Rugged touchscreen designed to provide an exceptional user experience and best possible measuring and analysis. Enhanced software features and analysis functions
Use full Leeb probe portfolio and combine with Portable Rockwell and UCI
Comes with the high accuracy known for all Equotip products
Ready-to-go reports through powerful built-in reporting feature
|
Native Scale |
HL |
|
Measuring Range |
150 – 950 HL |
|
Measuring Accuracy |
± 4 HL (0.5% at 800 HL) |
|
Available Scales |
HB, HV, HRA, HRB, HRC, HS, MPA |
|
Available Probes |
Leeb D / DC / DL / S / E / G / C |
|
Combination With Other Methods |
Portable Rockwell, UCI |
|
Average Roughness Ra (µm / µinch) |
7 / 275 (Leeb G) |
|
Minimum Mass (kg / lbs) |
0.02 / 0.045 (Leeb C) |
|
Minimum Thickness (mm / inch) |
1 / 0.04 (Leeb C) |
