| Model |
B043 KIT |
|---|---|
| Standard |
ASTM D6927-06, EN 12697-12, AASHTO T245, EN 12697-23, NF P98-251-2 ,ASTM D1559, CNR N. 30, EN 12697-34, BS 598:107, EN 13108 |

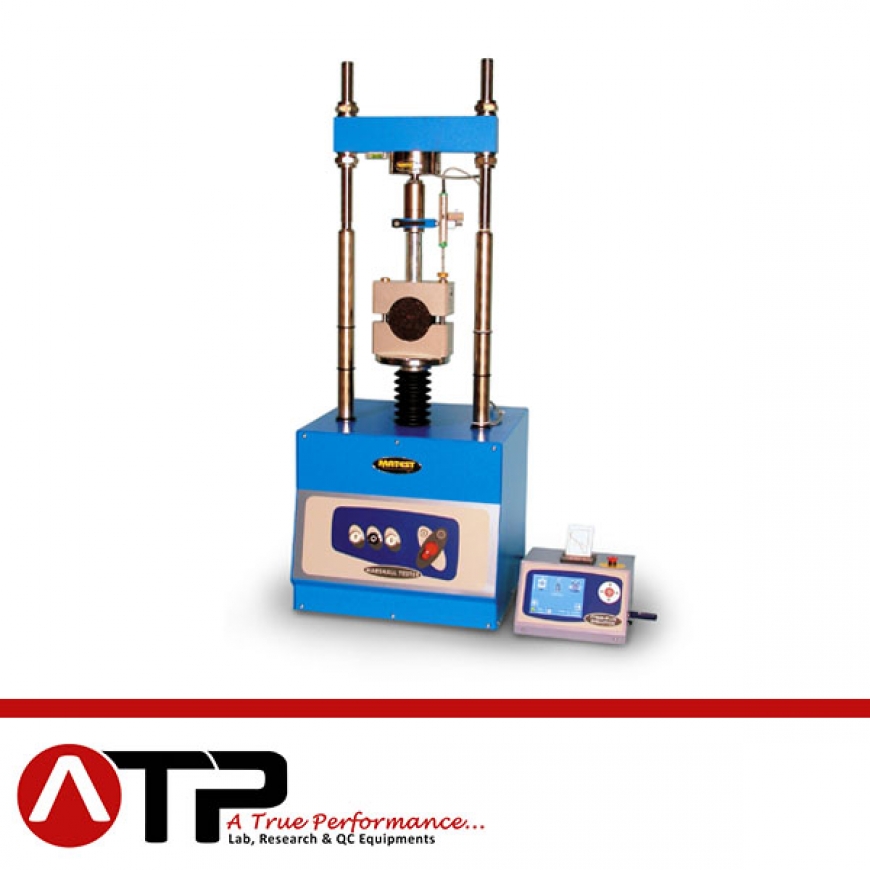

MARSHALL DIGITAL MACHINE 30 KN
The testing frame is the same as for mod. B042 KIT, but the load is measured by an electric cell 50 kN capacity with high precision strain transducers; the flow is measured by an electronic displacement transducer 50 mm stroke and ± 0,1% linearity.
The Cyber-Plus Evolution 8 channels digital display unit with microprocessor measures and displays at the same time the stability in kN and the flow in mm with pick hold
features with the possibility to transfer them to a PC and a printer through a RS232 port.
Supplied complete with Stability mould.
Power supply: 230 V 1 ph 50 Hz 900 W
Dimensions: 650x400x1100 mm.
Weight: 120 kg
