| Model |
M3000 |
|---|

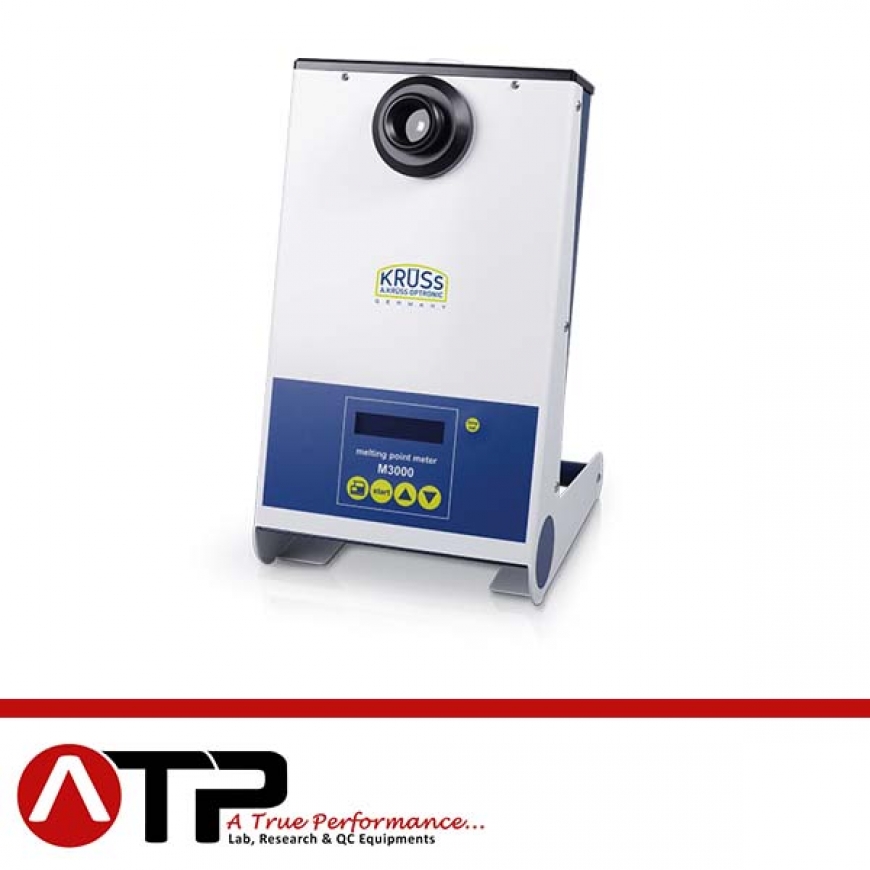

Melting Point Meter for Semi-Automatic Measurements
The M3000 provides fast and easy examination of powdery substances with a melting point up to 360 °C. Due to the triple capillary intake, it is possible to analyse three samples within one measurement run. Thanks to the preheating rate and the integrated fan cooling, fast measurements are possible in any temperature range. The display provides a wellarranged readout of all important measuring data.
- Semi-automatic measurement
- 3 capillary intakes
- LCD-Display
- Monitoring of the illuminated sample via lens
- Fast cooling through integrated fan
- Digital display of all important data
- Display in German or English
- With RS-232 interface for printer CBM910
- Easy-to-clean membrane keypad
- Includes protective cover and 100 capillaries
- Small sample volume
|
Measuring Range |
30–360 °C |
|
Accuracy |
±0.3 °C (30–200 °C) |
|
Resolution |
0.1 °C |
|
Preheating Rate |
To 300 °C approx. 4.0 min |
|
Heating Rate |
1 °C min-1 |
|
Observation Lens |
10x |
|
No. Of Capillaries |
3 |
|
Capillary Ø |
1.4 mm |
|
Interface |
RS-232 |
|
Ip Code |
IP20 |
|
Power Supply |
90–264 V |
|
Dimensions (W X H X D) |
210 mm x 360 mm x 230 mm |
|
Weight |
4.3 kg |
