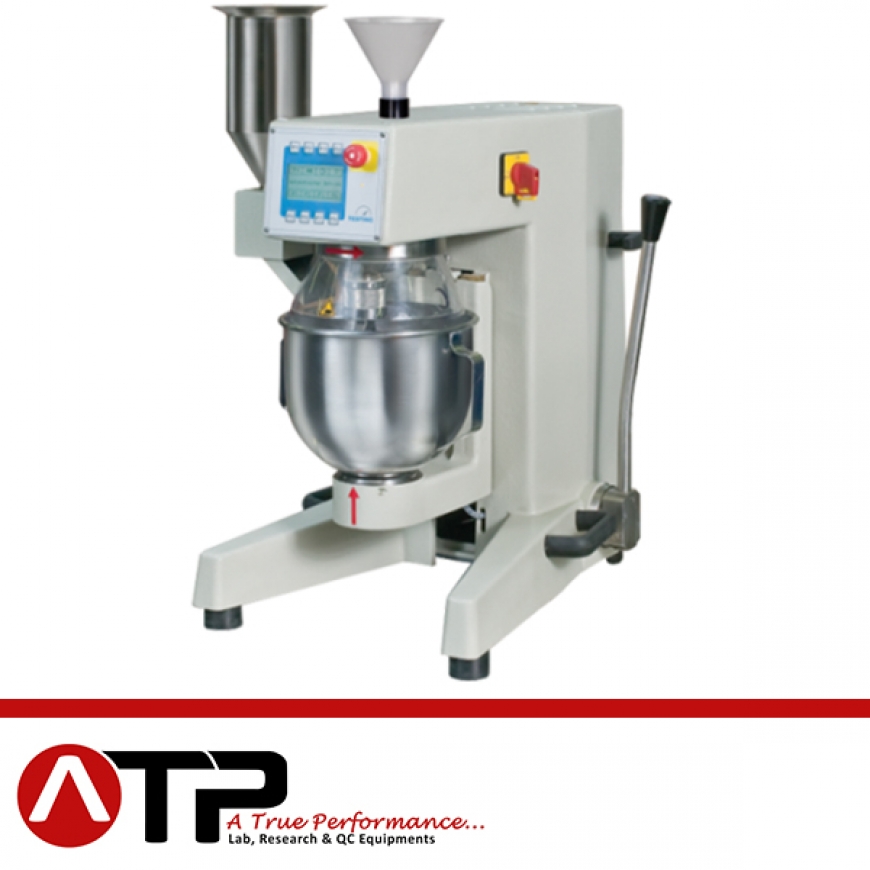

Motar mixer , 5 litres capacity

Digital control panel for manual, automatic or semiauto-

matic operation

Safety cover on mixing bowl

Electronic monitoring of bowl position

Safety restart procedure

Emergency stop button

Additional funnel above mixing bowl

8 languages for the display: German, English, French,

Russian, Italian, Portuguese, Spanish, Polish

Options:

Illumination of mixing bowl

Additional to the 4 stored programs: 12 freely program-

mable mixing programs

Freely programmable water quantity

Special stirrer acc. to ASTM

Special mixing bowl acc. to ASTM

Special mixing bowl for larger fraction or filler:

max. distance between bowl and stirrer 6 mm

Technical data:

Heavy duty design with aluminium and gray cast-iron

parts. Including stainless steel stirrer and stainless steel

mixing bowl.

Quick-clamping system for attaching the mixing bowl to

the mixer. Standard distance between mixing bowl and

stirrer 3 ± 1mm. Fine adjustments are made by use of

special tool.

Driven by a powerful three-phase AC motor. Planetary

gearing and toothed belt drive to ensure quiet and main-

tenance free operation.

Two mixing speeds: 140 ± 5 rpm and 285 ± 10 rpm.

The mixing bowl can be lowered by an elevating system.

Simple assembly and disassembly of the mixing bowl and

stirrer.

Dim. (wxdxh) = 390 x 600 x 700 – 860 mm

Net/gross weight: 62/70 kg

400 V / 50-60 Hz / 0.37 kW

110 V / 50-60 Hz

230 V / 50-60 Hz
