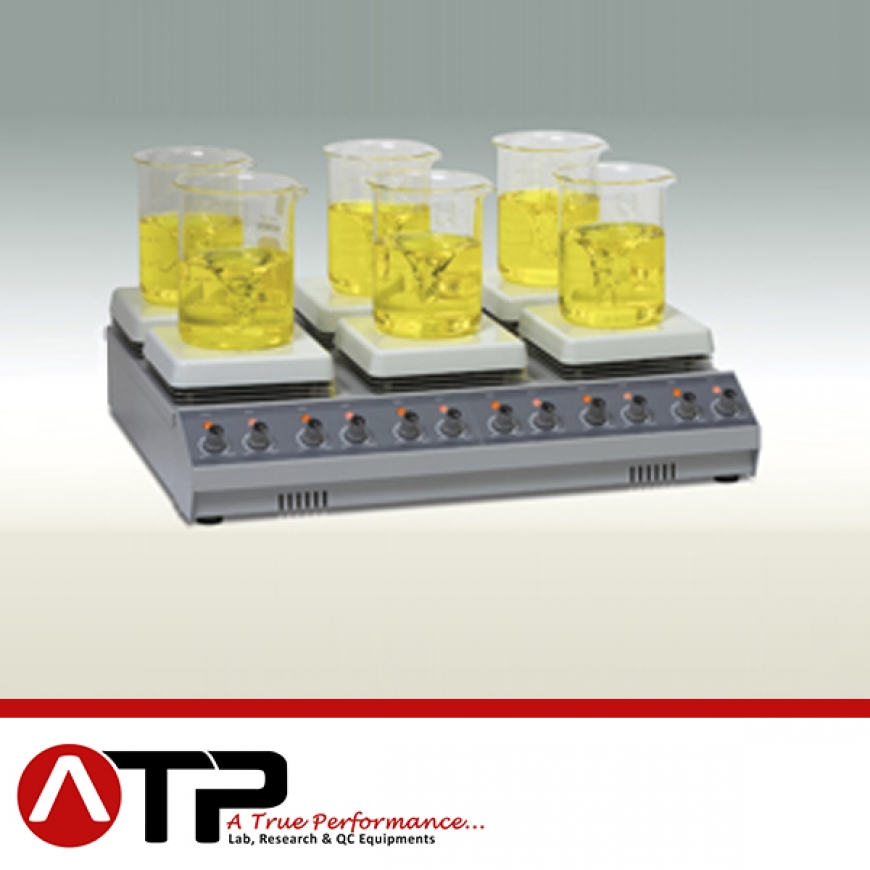

Multi-position hot & stirrers (Analoge)

“Three-In-One” and “Six-In-One” Hot plate stirrers

Individually controlled stirring and heating positions

Ideal for several applications at one time

Multiple type and compact design

Max. temperature : 380℃

Max. speed : 1500rpm

Feedback speed control

Precise speed control by feedback control

Model		HS12-03P	HS150-03P	HS12-06P	HS15-26P
Type		3 Positions		6 Positions
Temperature	Range	Max. 380℃
	Display	Scale(temperature)
	Controller timer	Analog temperature controller
Heater power		350W×3	480W×3	350W×6	480W×6
Stirring	Speed	100~150rpm
	Speed display	Scale(rpm)
	Capacity(H2O)	up to 1L	up to 2L	up to 1L	up to 2L
Speed Controller		Feedback control
Top Plate		Ceramic coated top plate
Dimensions	Plate area(mm)	Each 120×120	Each 150×150	Each 120×120	Each 150×150
	Overall(W×D×H)(mm)	410×250×125	500×280×125	830×250×125	540×450×125
Electrical supply		220V 50/60Hz or 110V 50/60Hz
Weight		6.3Kg	7.7Kg	12Kg	13.5Kg

SKU: 1903 Category: Hot Plate

Additional information

Model	HS12-03P , HS150-03P , HS12-06P , HS15-26P
