| Model |
HSD120-03P , HSD150-03P |
|---|

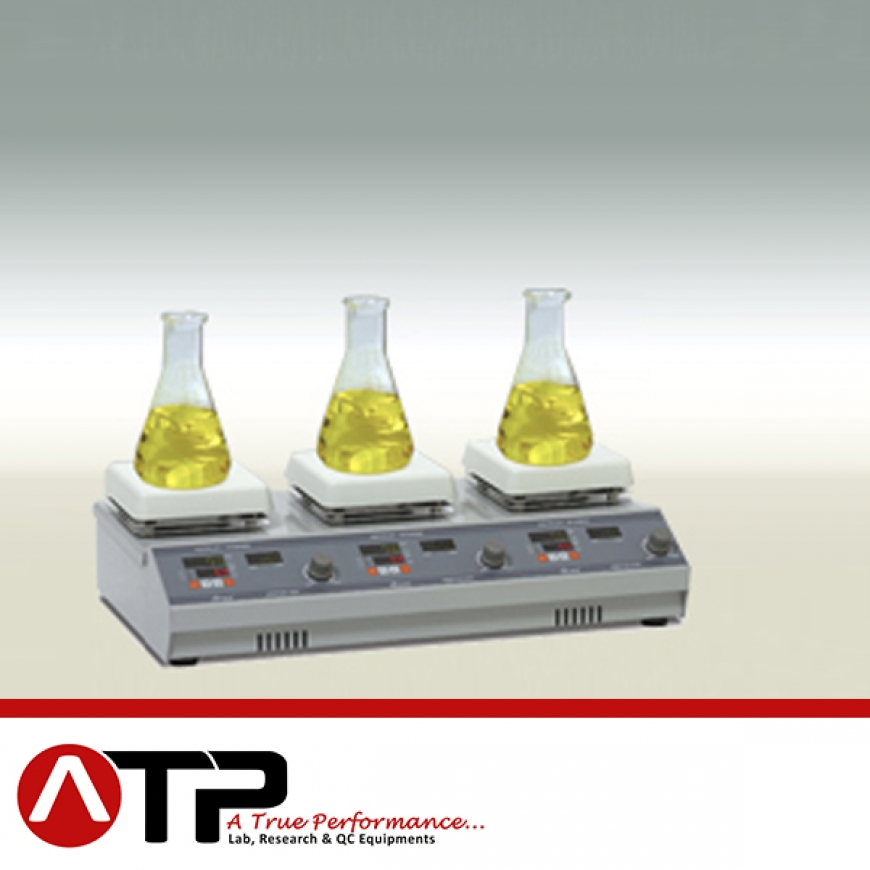

Multi-position hot & stirrers (Digital)
Three-In-One Hot plate stirrers
Individually controlled stirring and heating positions with digital display
Precise temperature control by PID auto-tuning, built-in timer (99hr 59min)
Max. speed : 1500rpm
Max. temperature : 380℃
Feedback speed control with Digital display
Excellent precision and accuracy of the temperature and speed control
Ideal for several applications at one time
Multiple type and compact design
|
Model |
HSD120-03P |
HSD150-03P |
|
|
Type |
3 Positions |
||
|
Temperature |
Range |
Max.380℃ |
|
|
Accuracy |
±1℃ |
||
|
Controller |
Digital PID auto-tuning |
||
|
Timer |
99hr 59min |
||
|
Heater power |
350W×3 |
480W×3 |
|
|
Stirring |
Speed |
100~1500rpm |
|
|
Speed display |
Digital |
||
|
Capacity(H2O) |
up to 1L |
up to 2L |
|
|
Speed Controller |
Feedback control |
||
|
Top Plate |
Ceramic coated top plate |
||
|
Dimensions |
Plate area(mm) |
Each 120×120 |
Each 150×150 |
|
Overall(W×D×H)(mm) |
480×260×125 |
510×300×125 |
|
|
Electrical supply |
220V 50/60Hz or 110V 50/60Hz |
||
|
Weight |
7.3Kg |
8.3Kg |
|
