Home General equipment Hot Plate Multi-position stirrers with heating (Digital)
Click to enlarge

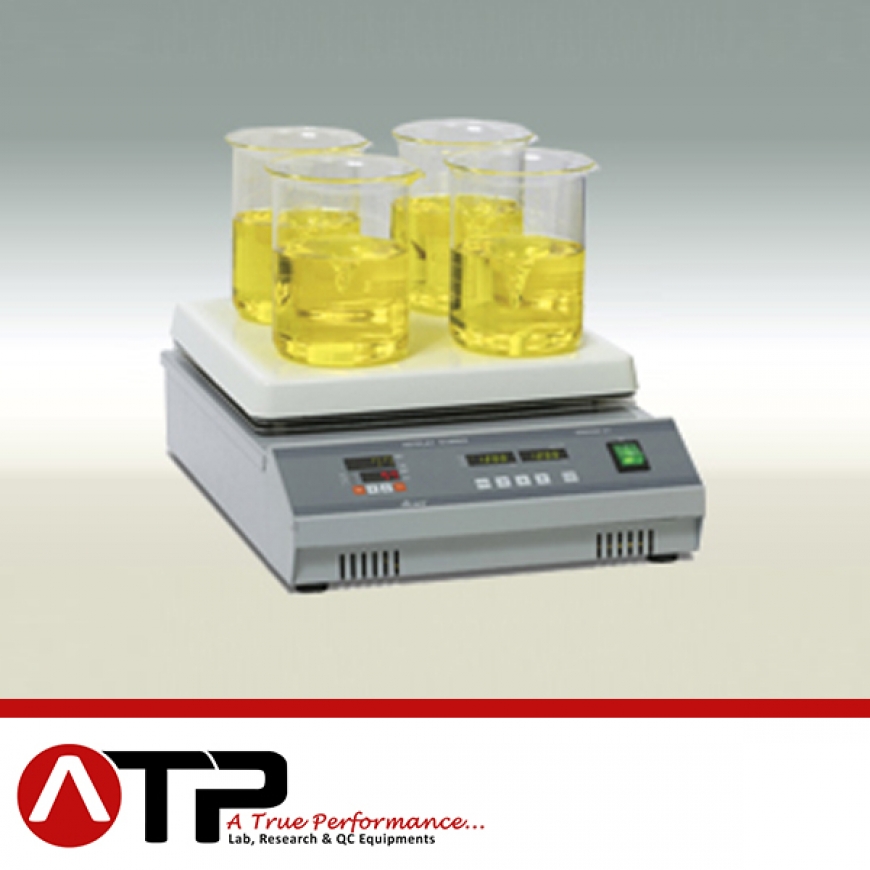

Multi-position stirrers with heating (Digital)

Whole plate is heated with one controller

Precise temperature control by PID auto-tuning, built-in timer

Uniform heat distribution on the heating plate

Ideal for heating/stirring with same temperature and speed

Max. temperature 350℃

Max. speed 1500rpm

4 or 6 positions controllable simultaneously

Possible to Perform experiment simultaneously at the same condition

Digital display of speed (Built-in timer)

Precise speed control by electronic feedback control

Excellent precision and accuracy of the temperature and speed control

Possible to see the setting and actual rpm simultaneously

Multi-position hot & stirrersModel

         HSD334-01

                 HSD326-01

Type

Hot plate & Magnetic Stirrer (Multi-position)

Temperature

Range

Max. 350℃

Accuracy

±1℃

Controller

Digital PID auto-tuning

Timer

99hr 59min

Heater power

1400W

1200W

Stirring

Positions

4 positions

6 positions

Motor

Brushless DC Motor 20W

Speed

150~1500rpm

Speed display

Digital



Timer

99hr 59min

Capacity(H2O)

up to 1000ml

up to 500ml

Speed Controller

Feedback control

Top Plate

Ceramic coated top plate

Dimensions

Plate area(mm)

300×300

300×210

Overall(W×D×H)(mm)

310×430×120

310×340×120

Electrical supply

220V 50/60Hz

Weight

7.7Kg

6.8Kg



مشاهده کاتالوگ

SKU: 1904 Category: Hot Plate
Share:
  • Additional information
Additional information
Model

HSD334-01 , HSD326-01
