| Model |
BL2015 |
|---|

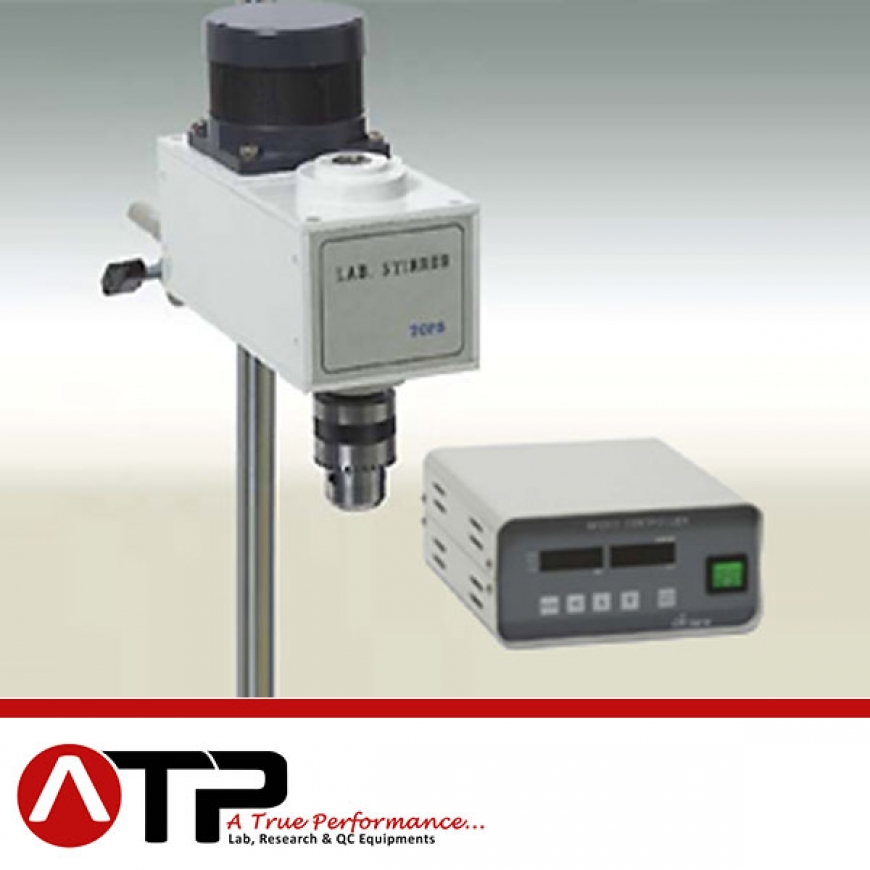

Overhead stirrer
High Speed, Low Viscosity
Piercing shaft, high speed & low viscosity. Stirrer for the low viscosity materials at the general experiment
Stirrer for the low viscosity materials, at the general experiment room
Room, stirring up to 10L. in the basis of water, max. torque of 2kg ·cm(19.6Ncm) and stirring speed range of 200-3000 rpm
Timer set-in function
Function of the positive/reverse rotation, automatic
Excellent stirring effect when using the automatic
positive/reverse rotating direction set-in mode
|
Model |
BL2015 |
BL2015D |
BL2010 |
BL2010D |
|
Stirring capacity (H2O) |
80L |
100L |
||
|
Viscosity (Max.) |
50,000mPas (medium) |
100,000mPas (medium, high) |
||
|
Motor (output) |
Brushless DC motor 200W |
Brushless DC motor 200W |
||
|
Torque (Max.) |
13kg·cm (127Ncm) |
19.5kg·cm (191Ncm) |
||
|
Speed range |
70~1500rpm |
50~1000rpm |
||
|
Speed controller |
Feedback control |
Feedback control |
||
|
Speed display |
scale |
Digital |
scale |
Digital |
|
Rotations |
– |
1. Right |
– |
1. Right |
|
Timer |
– |
99hr 59min |
– |
99hr 59min |
|
Chuck range |
Ø1~10mm |
Ø1~10mm |
||
|
Dimensions (W×D×H) |
100×220×168mm |
100×220×168mm |
||
|
Weight |
4.7Kg |
4.7Kg |
||
