| Model |
BL1003 |
|---|

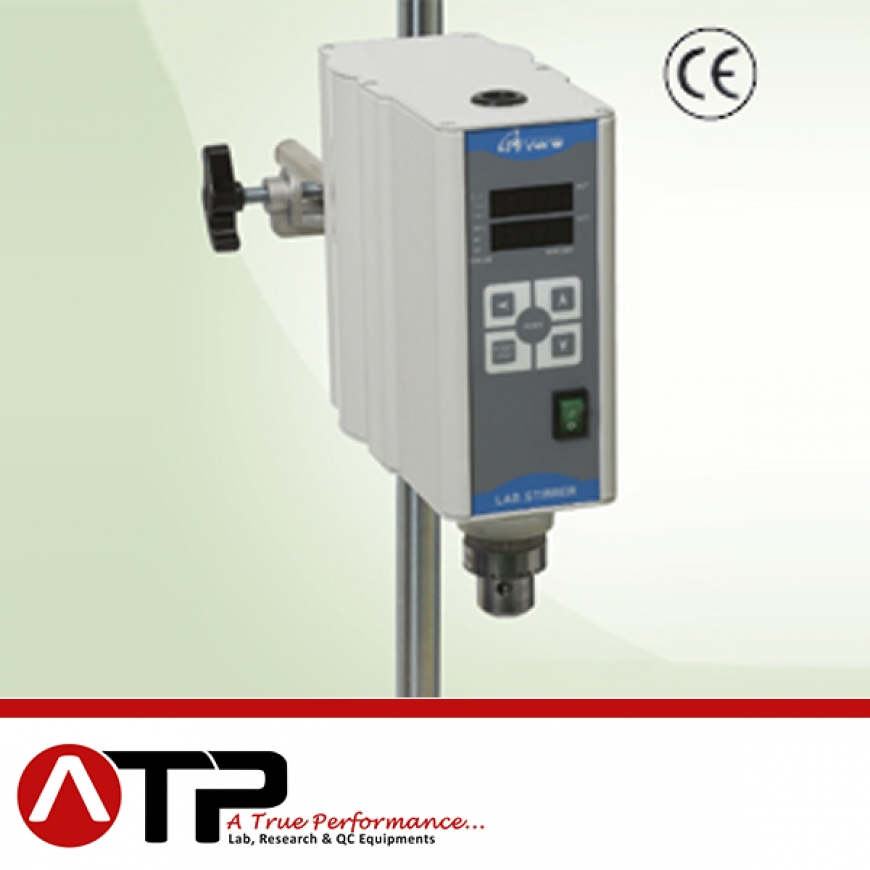

Overhead stirrer
As experimentally general stirrer for the medium and high viscosity materials, max. torque of 16kg·cm(156Ncm), in the basis of water, stirring up to 100L and stirring speed range of 50-600rpm
Experimental stirrer for the high viscosity, stirring up to 120L for small volume of the high viscosity, in the basis of water, max. torque of 32Kg·cm(313Ncm), and stirring speed range of 50-300rpm
Digital indicating function
Timer set-in function
Function of the positive/reverse rotation, automatic
positive/reverse rotating direction set-in mode
Excellent stirring effect when using the automatic
positive/reverse rotation set-in
|
Model |
BL1006 |
BL1006D |
BL1003 |
BL1003D |
|
Stirring capacity (H2O) |
100L |
120L |
||
|
Viscosity (Max.) |
70,000mPas (medium, high) |
150,000mPas (high) |
||
|
Motor (output) |
Brushless DC motor 100W |
Brushless DC motor 100W |
||
|
Torque (Max.) |
16kg·cm (156Ncm) |
32kg·cm (313Ncm) |
||
|
Speed range |
50~600rpm |
50~300rpm |
||
|
Speed controller |
Feedback control |
Feedback control |
||
|
Speed display |
scale |
Digital |
scale |
Digital |
|
Rotations |
– |
1. Right |
– |
1. Right |
|
Timer |
– |
99hr 59min |
– |
99hr 59min |
|
Chuck range |
Ø1~10mm |
Ø1~10mm |
||
|
Dimensions (W×D×H) |
78×190×170mm |
78×190×170mm |
||
|
Weight |
3.2Kg |
3.2Kg |
||
