Oxidation characteristics of distillate fuel oil

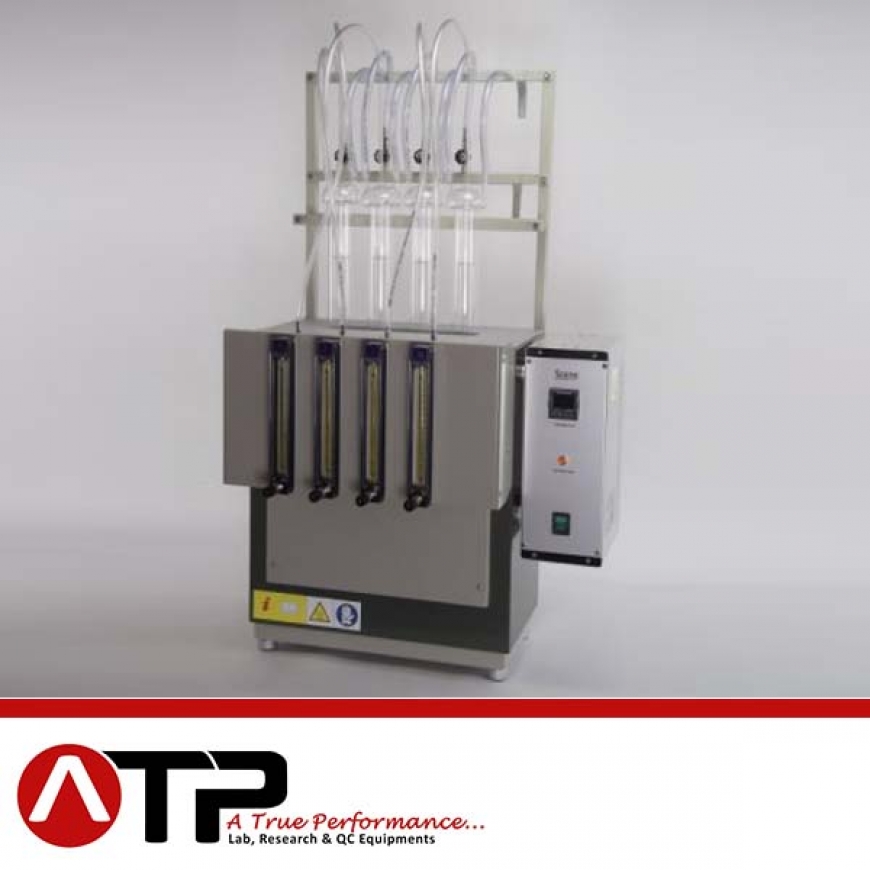

The apparatus consists of a benchtop steel case containing an aluminium thermostatic block with the holes for the introduction of the oxidation cells, a support for the flowmeters and a water dispenser for the condensers refrigeration.

• Enamel finished benchtop steel case.
• Aluminium block bath with wells for test tubes, 48 mm diameter and 365 mm depth.
• Stainless steel heaters.
• Microprocessor thermoregulator with built-in temperature display, 0.1°C accuracy. Probe: PT100 RTD. Regulation accuracy ± 0.1°C. Working range: from ambient to 100 °C.
• Safety device against overheating.
• Easy access control box placed on the right side of the apparatus and containing all the electronics and electrical parts. Aluminium control panel with english written indications.
• Oxygen inlet manifold with high precision flowmeters with calibration certificate. Individual needle valves for regulating oxygen flow at 3 l/h ± 0.1 l/h
• Water inlet manifold with valve connections for the mushroom condensers.
• Water outlet manifold.
• English written user manual.
• For connection to 220V/50Hz. Power consumption 2000 W.
• CE marked.
• Four, six, eight and twelve-place units available.
• Version with mass flow controller and software also available.

AD2274-100        Four-place unit. Dimensions (l x w x h): 760 x 500 x 960 mm. Weight: 90 kg

AD2274-110        Six-place unit. Dimensions (l x w x h): 910 x 500 x 960 mm. Weight: 100 kg

AD2274-120        Eight-place unit. Dimensions (l x w x h): 850 x 550 x 960 mm. Weight: 110 kg

AD2274-130        Twelve-place unit. Dimensions (l x w x h): 1000 x 550 x 960 mm. Weight: 130 kg

ACCESSORIES

AD2274-A00        Apparatus for filterable insolubles

AD2274-A01        Pack of 100 filters

AD2274-A02        Vacuum flask 500 ml

CAL001                PT100 simulator

CAL002                Officially certified PT100 simulator

CONSUMABLES

AD2274-C00        Test tube

AD2274-C01        Mushroom condenser

AD2274-C02        Oxygen delivery tube

TA040C-N00       ASTM 40C thermometer (+72°C/+126°C)
