Oxidation characteristics of inhibited mineral oils

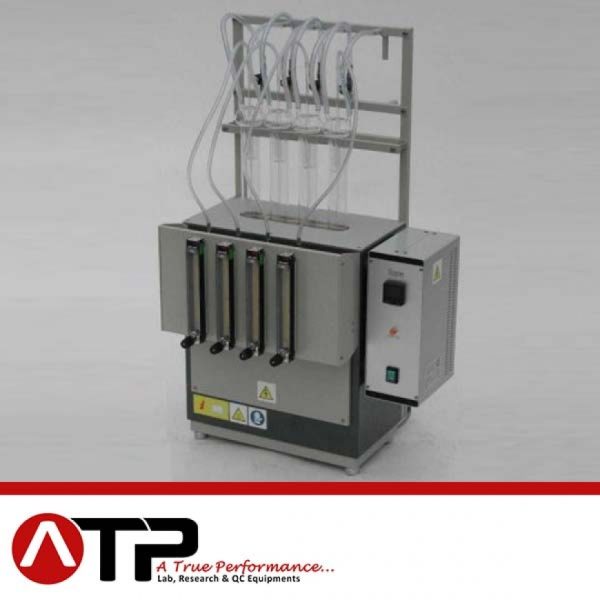

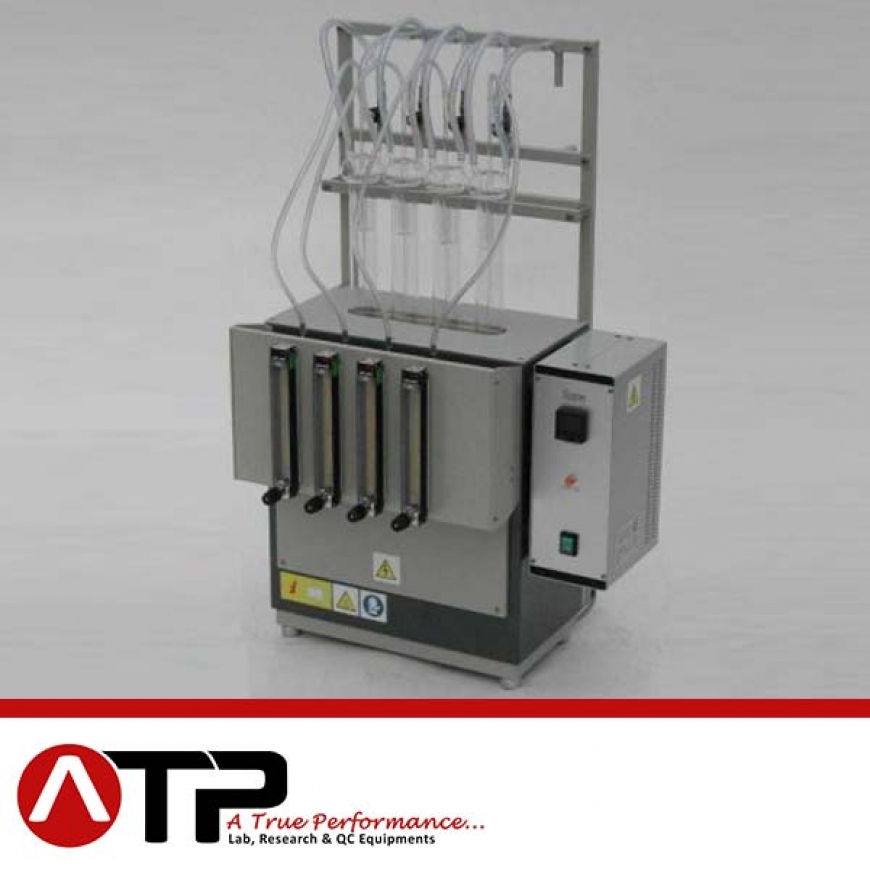

The apparatus consists of a benchtop steel case containing an aluminium thermostatic block with a series of holes for the introduction of the oxidation cells, a support for the flowmeters and a water dispenser for the condenser refrigeration.

• Enamel finished benchtop steel case.
• Aluminium block bath with  wells for test tubes, 48 mm diameter  and 365 mm depth.
• Stainless steel electric heaters.
• Microprocessor thermoregulator with built-in temperature display, 0.1°C accuracy. Probe: PT100 RTD. Regulation accuracy ± 0.1°C. Working range: from ambient to 100 °C.
• Safety device against overheating.
• Easy access control box placed on the right side of the apparatus and containing all the electronics and electrical parts. Aluminium control panel with english written indications.
• Oxygen inlet manifold with high precision flowmeters with calibration certificate. Individual needle valves for regulating oxygen flow at 3 l/h ± 0.1 l/h
• Water inlet manifold with valve connections for the mushroom condensers.
• Water outlet manifold.
• n° 1 thermometer bracket.
• English written user manual.
• For connection to 220V/50Hz. Power consumption 2000 W.
• CE marked.
• Four, six, eight and twelve-place units available.
• Version with mass flow controllers and software also available.

AD0943-100        Four-place unit. Dimensions (l x w x h): 640 x 430 x 1000 mm. Weight: 90 kg

AD0943-110        Six-place unit. Dimensions (l x w x h): 760 x 430 x 1000 mm. Weight: 110 kg

AD0943-120        Eight-place unit. Dimensions (l x w x h): 640 x 490 x 1000 mm. Weight: 130 kg

AD0943-130        Twelve-place unit. Dimensions (l x w x h): 760 x 430 x 1000 mm. Weight: 160 kg

ACCESSORIES

AD0943-A00        Winding fixture

CAL001                PT100 simulator

CAL002                Officially certified PT100 simulator

CONSUMABLES

AD0943-C00        Test tube

AD0943-C01        Mushroom condenser

AD0943-C02        Oxygen delivery tube

AD0943-C03        Cell thermometer

AD0943-C04        Syringe sampling tube

AD0943-C05        Methacrylate sampling tube holder

AD0943-C06        Sampling tube spacer

AD0943-C07        Catalyst coil

AD0943-C08        Steel wire,  10 m

AD0943-C09        Copper wire, 10 m

TA040C-N00       ASTM 40C thermometer (+72°C/+126°C)
