Oxidation stability of mineral insulating oils

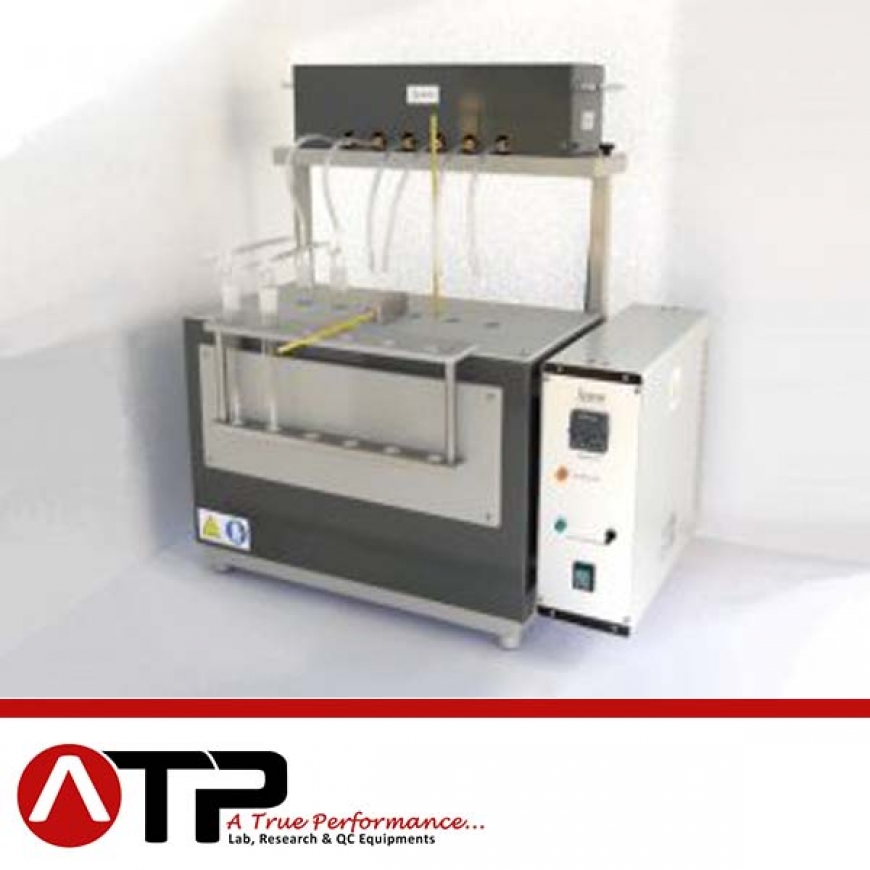

The apparatus consists of a benchtop steel case hosting a dry bath, 4, 6, 8 or 12 positions: the instrument is equipped with individual variable area flowmeters for each position. The advantage of the aluminium block bath consists in the elimination of smelling oil baths and toxic fumes. Besides, the glassware remains clean and not slippery as with oil baths, reducing the risks of incidental breakings.

• Enamel finished benchtop steel case.
• Aluminium block bath with jackets 27 mm diameter and 140 mm height for oxidation tubes.
• Stainless steel heaters.
• High efficiency thermal insulation.
• Microprocessor thermoregulator, PID action with built-in digital display 0.1°C accuracy. Probe: Pt100 RTD For working temperature from ambient to 220°C ± 0.1°C.
• Safety device against overheating.
• Easy access control box containing all the electronics. Anodized aluminium control panel with English written indications.
• For 220 V/50 Hz connection. Power consumption: 1500 W.
• English written user manual.
• CE marked.
• Without glassware and flowmeters: appropriate flowmeter rack should be selected from the table in accessories section.
• Glassware support to run tests acc. to CEI 10.8, CEI/IEC 1125, EN 61125 IP 48, 280, 306, 307, EN 61125 also available.
• Software for flow control included in the digital flowmeter racks.

AD2440-200        Four-place apparatus.

AD2440-210        Six-place apparatus.

AD2440-220        Eight-place apparatus.

AD2440-230        Twelve-place apparatus.

ACCESSORIES

AD2440-A00      Rack with four high precision flowmeters with precision valve at inlet, 0 to 20 l/h air, 150 mm scale (IP 280)

AD2440-A01      Rack with six flowmeters as above

AD2440-A02      Rack with eight flowmeters as above

AD2440-A03      Rack with twelve flowmeters as above

AD2440-A04      Rack with four high precision flowmeters with precision valve at inlet, 0 to 1.6 l/h oxygen, 150 mm scale
(CEI  10.8, CEI/IEC 1125 (A + B), EN 61125 (A + B), IP 48, 306, 307

AD2440-A05      Rack with six flowmeters as above

AD2440-A06      Rack with eight flowmeters as above

AD2440-A07      Rack with twelve flowmeters as above

AD2440-A10      Adsorption tube support for tests acc. to CEI 10.8, CEI/IEC 1125, EN 61125, IP 48, 280, 306, 307

AD2440-A20      Rack with four high precision digital flowmeters with software, 0 to 21 l/h air (IP 280)

AD2440-A21      Rack with six digital flowmeters as above

AD2440-A22      Rack with eight digital flowmeters as above

   AD2440-A23      Rack with twelve digital flowmeters as above

AD2440-A24      Rack with four high precision digital flowmeters with software, 0 to 1.8 l/h oxygen, (CEI 10.8, CEI/IEC 1125 (A + B), EN 61125 (A + B), IP 48, 306, 307)

AD2440-A25      Rack with six digital flowmeters as above

AD2440-A26      Rack with eight digital flowmeters as above

AD2440-A27      Rack with twelve digital flowmeters as above

CAL001              PT100 simulator

CAL002              Officially certified PT100 simulator

CONSUMABLES

AD2440-C00      Oxidation tube with Drechsel head

AD2440-C01      Adsorption tube with Drechsel head

AD2440-C02      Set of 12 copper coils for tests acc. to ASTM D 2440

AD2440-C03      Set of 12 copper coils for tests acc. to IP 306 and IP 307

AD2440-C04      Set of 12 copper coils for tests acc. to CEI/IEC 1125 (method A) and EN 61125 (method A)

AD2440-C05      Set of 12 copper coils for tests acc. to CEI/IEC 1125 (method B) and EN 61125 (method B)
