Particle Size Analysis of Soils – Hydrometer Method

Particle size analysis of soils: Hydrometer method

This equipment is used to determine the quantitative size distribution of very fine particle in soils such as clay and silt.

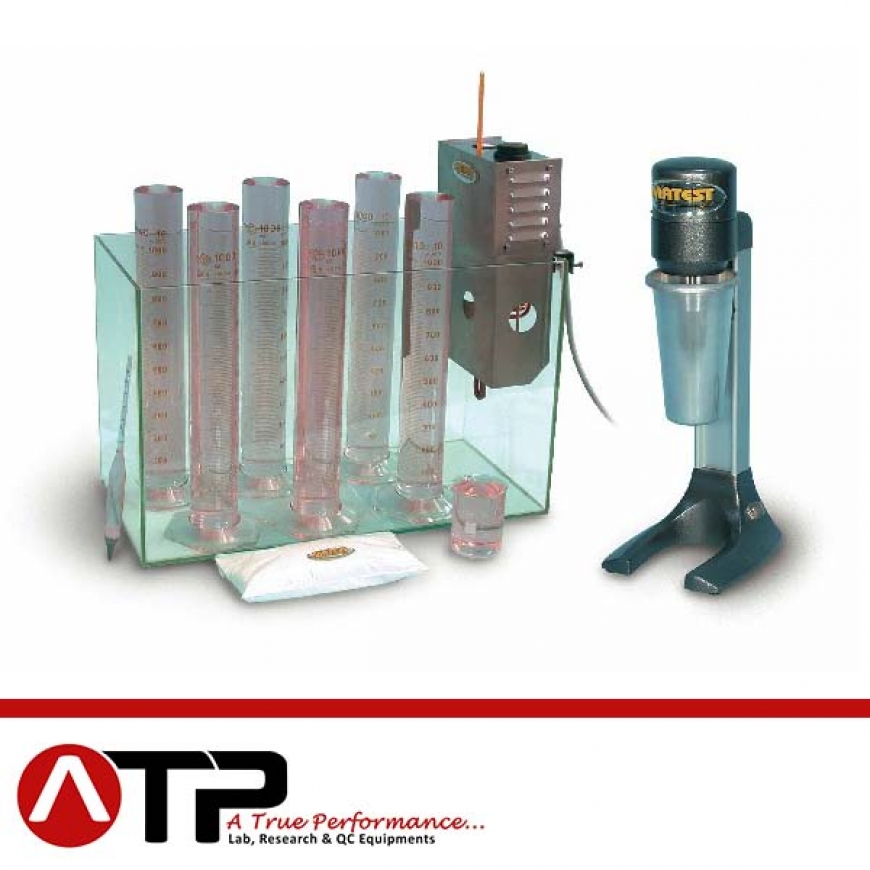

S155 KIT complete set

The complete set comprises:

– S155-01 SEDIMENTATION CYLINDER, 1000 ml capacity (6 pieces)
– V172 SOIL HYDROMETER, 151H, range 0,995 to 1,038 g/ml with div. 0,001
– S155-04 GLASS TANK, dimensions: 600x300x380 mm
– S155-09 HEATER, “professional type”, complete with thermostat, cooling coil, circulation unit. 230V 1ph 50Hz 1000W
– S155-10 GLASS THERMOMETER, range 0 – 50°C., subdiv. 0,5°C.
– V104-03 BEAKER, pyrex, 250 ml capacity
– V300-23 SODIUM Hexametaphosphate, 1000 g
– S156-01 KIT HIGH SPEED STIRRER, 10.000 rpm, complete with cup, paddle, anti-splash baffle, for dispersing soil particles in water. 230V 1ph 50Hz

Total weight: 60 kg approx
