Particle Size Distribution Pipette Method

This equipment is used to determine the quantitative size distribution of very fine particle in soils, like clay and silt.

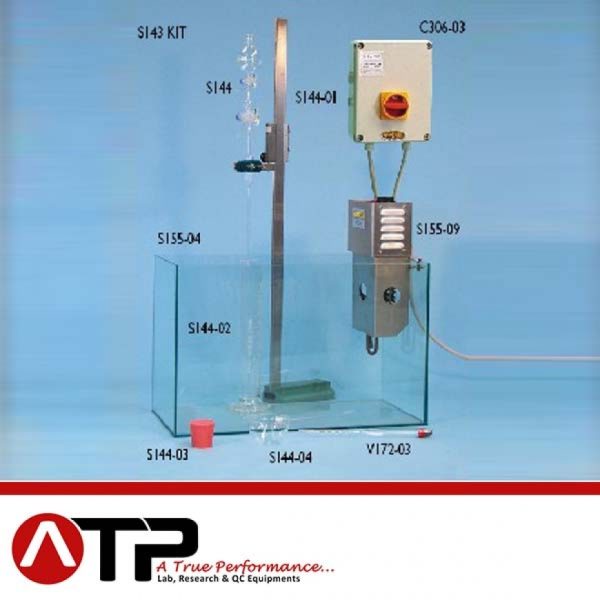

The complete set comprises:

– S144 ANDREASEN PIPETTE, 25 ml capacity, for an accurate extraction of the quantities of soil in suspension for analysis.
– S144-01 PIPETTE STAND, to accurately raise and lower the pipette with no transmission of vibration to not disturb the sample suspension. Weight: 10 kg
– S144-02 SEDIMENTATION CYLINDER, 500 ml capacity
– S144-03 RUBBER BUNG for cylinder
– S144-04 EVAPORATING DISH, glass, dia. 90 by 50 mm height.
– V172-03 SOIL HYDROMETER, long stem, 0.995 to 1030 g/ml. (BS, NF)
– S155-04 GLASS TANK, dimensions: 600x300x380 mm.
– S155-09 HEATER, “professional type”, complete with thermostat, cooling coil, circulation unit. 230V 1ph 50Hz 1000W
– S155-10 THERMOMETER, range 0 – 50°C., subd. 0,5°C.

Total weight: 40 kg approx
