| Model |

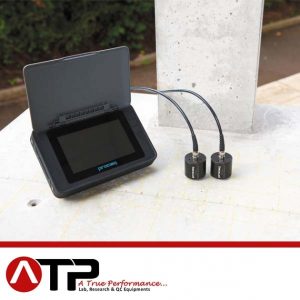

Pundit 200 Pulse Echo |
|---|
Pulse echo tomography testing
The Pundit 200 Pulse Echo extends the ultrasonic application to objects where access is restricted to a single side. Major applications are slab thickness measurments and the location of voids and delaminations. Rugged touchscreen with intuitive user interface.
B-Scan is constructed directly on the instrument as the scan is carried out

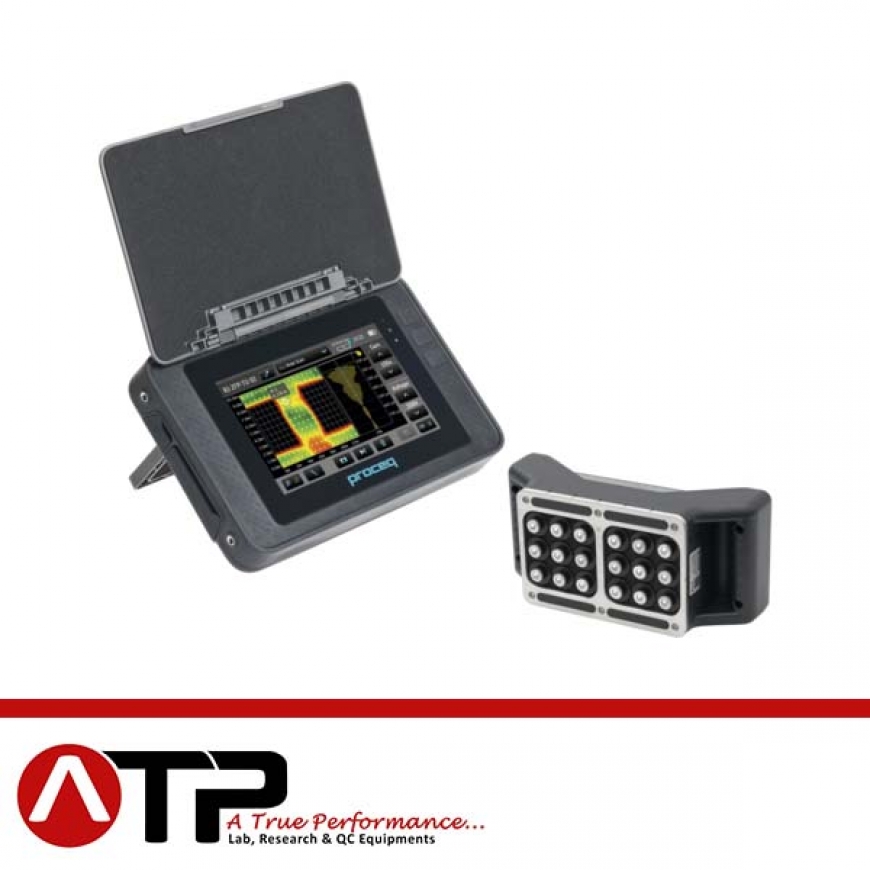

Can be upgraded to Multi Channel

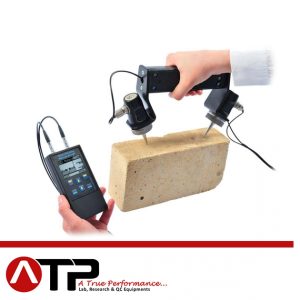

Same instrument can be used with classic pulse velocity transducers
|
Measuring Range |
Up to 1 m depending on concrete quality |
|
Bandwidth |
20 to 500 kHz |
|
Technology |
Single channel ultrasonic pulse echo |
|
Measuring Resolution |
0.1 us |
|
Pulse Voltage UPV |
– |
|
Pulse Voltage UPE |
± 50 to ± 200 V |
|
Receiver Gain |
1 to 10’000x (0 to 80 dB) |
|
Nominal transducer frequency |
24 – 500 kHz |
|
Pulse Shape |
Square Wave |
|
Pulse Delay |
– |
|
Number Of Channels |
1 |
