| Model |
PUNDIT LAB |
|---|---|
| Standard |
EN 12504-4 , ASTM C597-02 , BS 1881 Part 203 , ISO1920-7:2004 , IS13311 , |

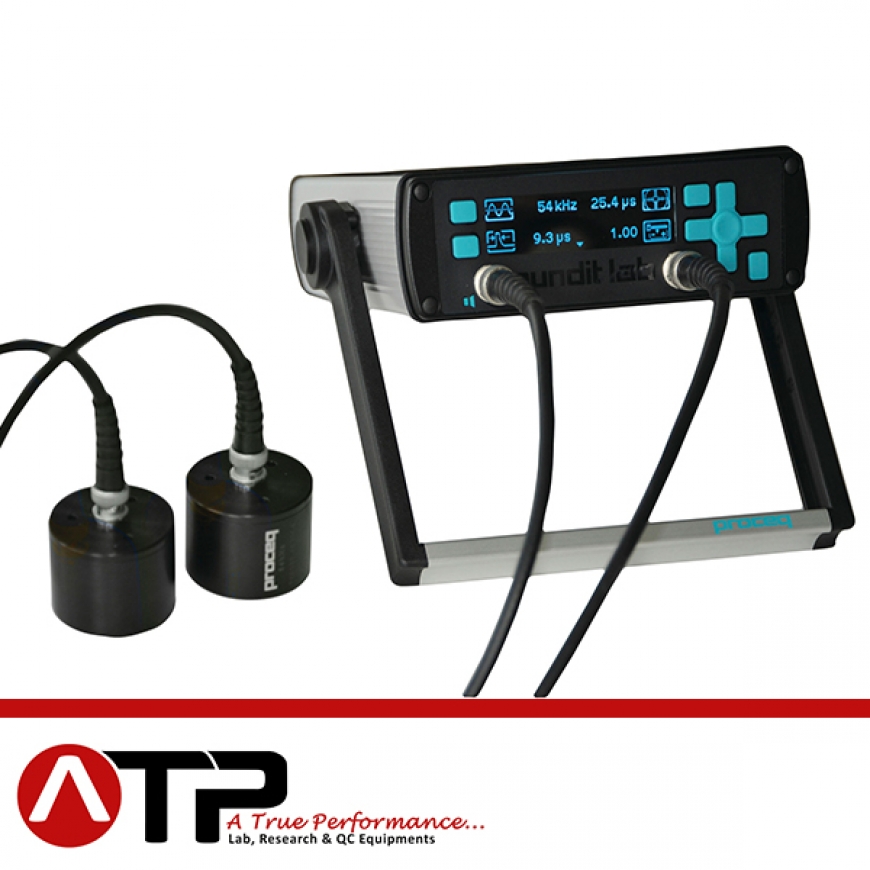

Pundit Lab Ultrasonic
Pundit Lab(+)
The Pundit Lab is a flexible UPV test instrument designed primarily for operation in laboratories. It supports all traditional UPV test modes. The Pundit Lab+ comes with an extended feature set.
Automated combination of the transmitter voltage and the receiver gain for accurate and stable measurements
Open interface, can be integrated into LabView
Pundit Lab+ removes the need for external amplification when used with exponential transducers
|
Measuring Range |
Up to 15 m depending on concrete quality |
|
Bandwidth |
20 to 500 kHz |
|
Technology |
Ultrasonic pulse velocity |
|
Measuring Resolution |
0.1 us |
|
Pulse Voltage UPV |
125 to 500 V |
|
Pulse Voltage UPE |
– |
|
Receiver Gain |
1x, 10x, 100x, AUTO, Pundit Lab+ up to 1000x |
|
Nominal transducer frequency |
24 – 500 kHz |
|
Pulse Shape |
Square Wave |
|
Pulse Delay |
– |
|
Number Of Channels |
1 |
