| Model |
Pundit 200 |
|---|---|
| Standard |
EN 12504-4, ASTM C 597-02, ISO 1920-7:2004, IS 13311, CECS 21 |

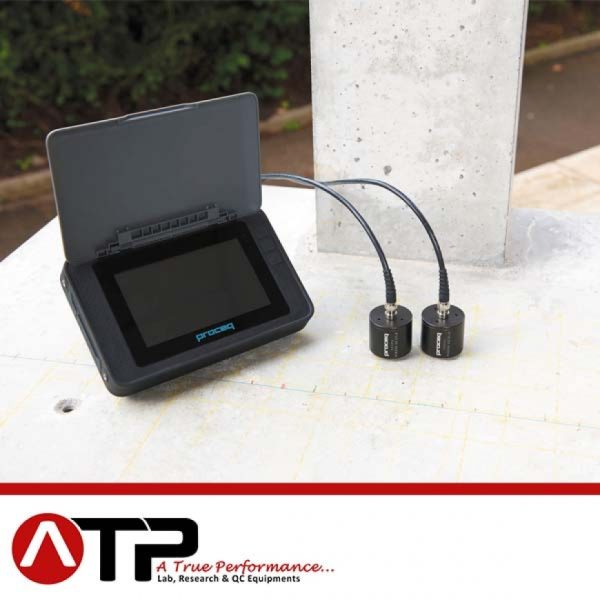

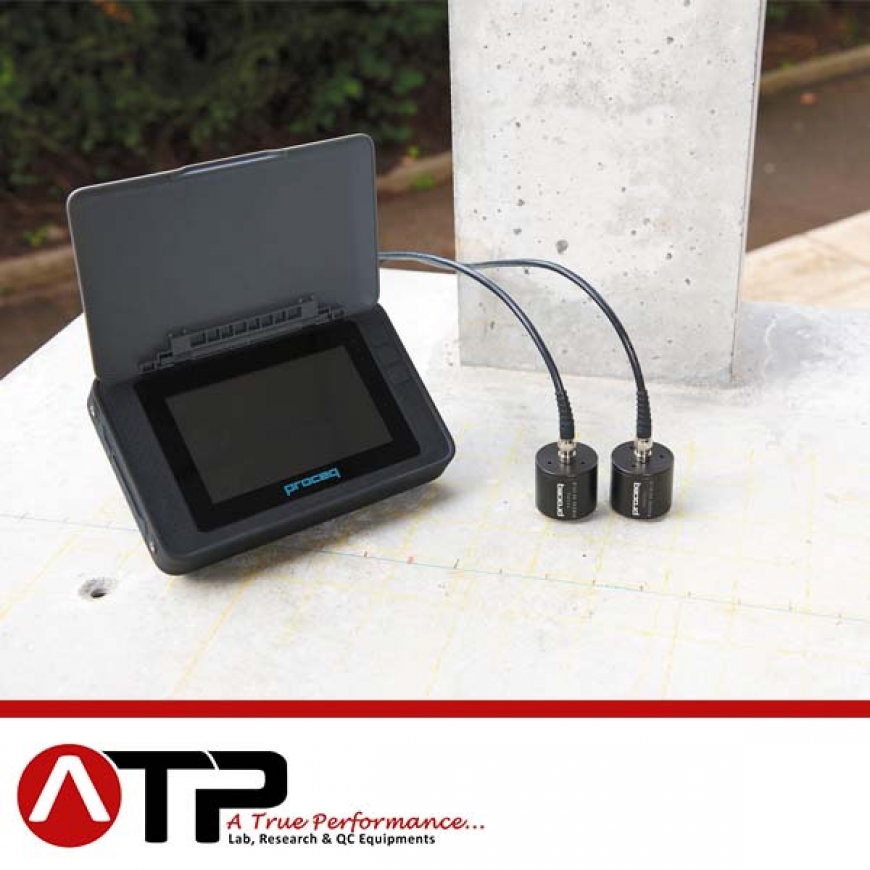

Pundit ultrasonic pulse velocity
The Pundit 200 is a best-in-class UPV test instrument with an extended range of measurement modes. Rugged touchscreen with intuitive user interface for best possible measuring and analysis of the measured data.
Various measurement modes including Line Scan, Area Scan, Data Logging, compressive strength correlations and E-modulus measurement
Automatic surface velocity calculation according to standards
Same instrument can be used with pulse echo transducers
|
Measuring Range |
Up to 15 m depending on concrete quality |
|
Bandwidth |
20 to 500 kHz |
|
Technology |
Ultrasonic pulse velocity |
|
Measuring Resolution |
0.1 us |
|
Pulse Voltage UPV |
100 to 450 Vpp |
|
Pulse Voltage UPE |
– |
|
Receiver Gain |
1 to 10’000x (0 to 80 dB) |
|
Nominal transducer frequency |
24 – 500 kHz |
|
Pulse Shape |
Square Wave |
|
Pulse Delay |
– |
|
Number Of Channels |
1 |
