| Model |
Rebarscope |
|---|---|
| Standard |
ACI 318, BS 1881 Part 204, DIN 1045, CP 110, EC 2, SIA< 162, DGZfP B2 |
Rebar Locator

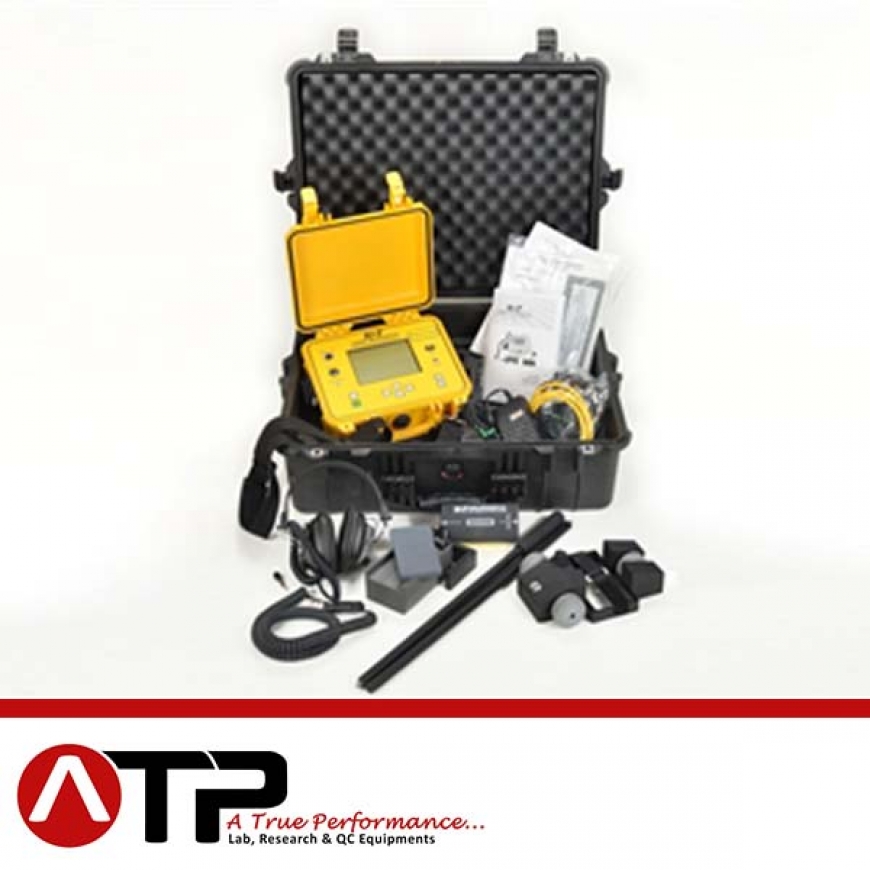

Rebarscope® R-C-410
Advanced System for Rebar Location and Bar Size Determination
Applications
- Structural Engineers
- Rebar Mapping
- Rebar Network Analysis
- Utility Mapping
Features & Benefits
- Eddy current sensor design for greater accuracy with built in temperature compensation, no need to zero the sensor.
- Single sensor for all depth ranges.
- Seperate sensor and main instrumentation unit to scan difficult to access area’s.
- Locates rebar, post tension cable, conduit,and copper pipe.
- Rugged and splash resistant case. Daylight visible display.
- Optional Scan Cart™ logs distance data as well as location of rebar.
- Locates up to 8″ (200 mm) deep. Determines bar size up to 4.5″ (115 mm) deep.
- Conforms to ACI 318, BS 1881 Part 204, DIN 1045, CP 110, EC 2, SIA< 162, DGZfP B2.
Specifications
|
Main Unit |
|
|
Weight: |
5.4lbs 2.5Kg |
|
Size: |
10.63″ L x 9.68″ W x 4.88″ H (27cm x 24.5cm x 12.4cm) |
|
LCD Size: |
320 x 240 pixels |
|
LCD Dim.: |
3.5″ L x 4.65″ H (8.9cm x 11.8cm) |
|
Recharging Voltage: |
18v |
|
Memory Capacity: |
80 thousand data points |
|
Battery Life: |
4 – 6 hrs continues run time |
|
Probe Dimensions |
|
|
Weight: |
1 lb 0.45Kg |
|
Size: |
5″ L x 2.4″ W x 1.6″ H (12.7cm x 6cm x 4.1cm) |
|
Scan Cart Dimensions |
|
|
Weight: |
1 lb 0.45Kg |
|
Size: |
8.25″ L x 5.6″ W x 2.25″ H (20.1cm x 14.2cm x 5.7cm) |
|
Maximum Scan Length: |
48 ft. 14.6m |
