| Model |
120(No.1) , 122(No.2) , 120/2(No.1) , 122/2(No.2) , 120/3(No.1) , 122/3(No.2) |
|---|---|
| Standard |
IP 70 (Obs) |

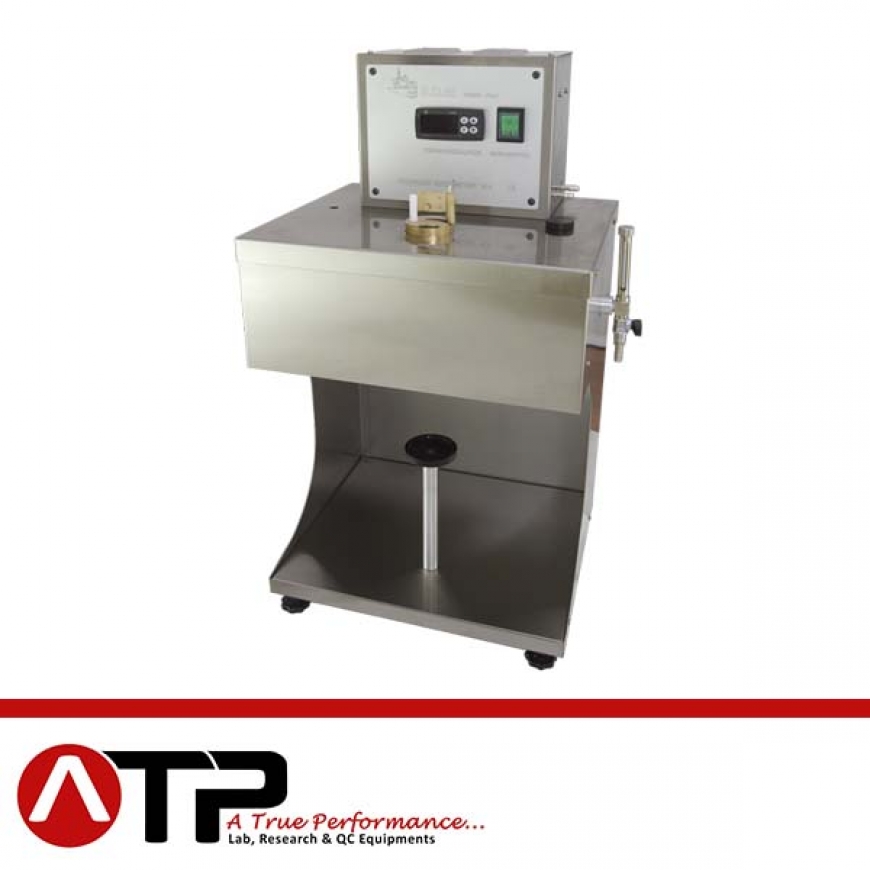

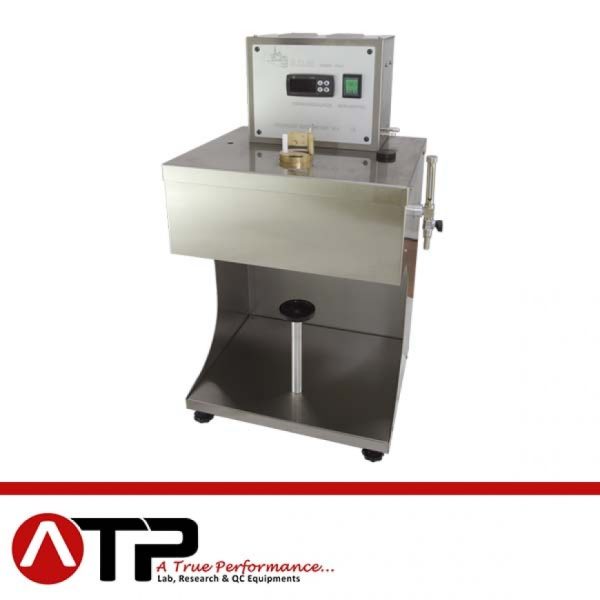

Redwood Viscometer
No.1 Determines viscosity of oils not exceeding 2000 seconds at the test temperature.
No.2 Determines viscosity of oils exceeding 2000 seconds at the test temperature.
Structure made of stainless steel, with front opened jacket, equipped with: bath with capacity of about 7 liters, calibrated brass oil cup with orifice no.1 or no.2, fitted with closing-ballended rod. Temperature regulation by digital thermoregulator PID with PT100 probe class A and overtemperature alarm, stainless steel heater, cooling coil, motor stirrer, insulated double wall, external level indicator
– Temperature: from ambient to 95°C (203°F)
– Stability: ±0.1°C
– Bath capacity: 7 about liters
– Power supply: 220V 50/60Hz
– Power: 800W
– Dimensions: 40x29x64 cm
– Weight: 12 kg
– Relative Humidity: lower than 90% not condensing,
