Reid vapor pressure of gasoline

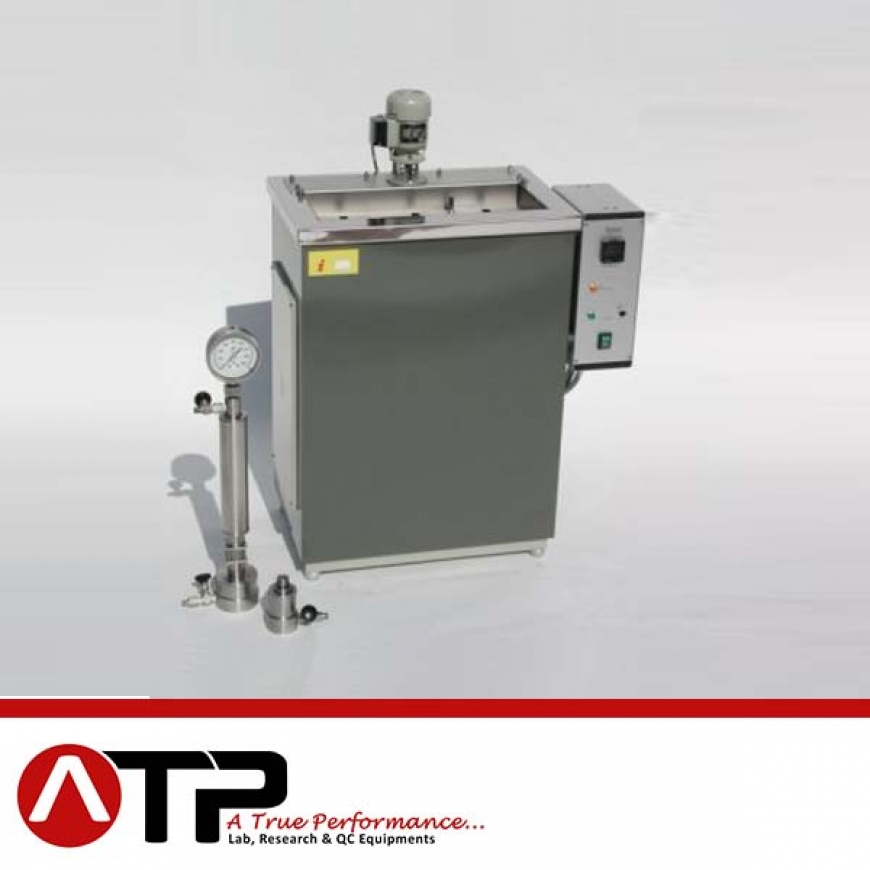

The apparatus consists of a floor mounted water bath with a support for three vapour pressure cylinders.

• Enamel finished steel case.
• Stainless steel water bath suitable for the immersion of three vessels. Drain cock on the rear of the apparatus.
• Electric stirrer complete with stainless steel shaft.
• Electronic temperature control (proportional and derivative) obtained using a microprocessor controlled thermoregulator. with built-in digital display 0.1°C accuracy. The probe is a PT100 RTD. Regulation accuracy ± 0.1°C. Working range: from ambient to 50°C.
• Stainless steel heater.
• Safety device that cuts off the power supply and lights a lamp on the control panel in case of overheating of the liquid in the bath or lowering of the water level.
• Easy access control box placed on the right side of the apparatus containing all the electronics: anodized aluminium control panel with english written indications.
• English written user manual.
• For 220 V/50 Hz connections. Power consumption: 1000 W.
• Dimensions (l x w x h ): mm 500 x 300 x 850 approx.  Weight 50 kg approx.
• CE marked.

AD0323-100        Apparatus

ACCESSORIES

AD0323-A00        Reid V.P. vessel

AD0323-A01        Reid V.P. vessel  for sampling under pressure

AD0323-A02        Mercury manometer (for checking gauge)

AD0323-A03        Bourdon type spring gage stainless steel Ø 150 mm,   range 0/1 Kg/cm2 –  accuracy 1% f.s. range 0-1 Kg/cm2

AD0323-A04        Bourdon type spring gage stainless steel Ø 150 mm, range 0/1 Kg/cm2 –  accuracy 1% f.s. range 0-2.5 Kg/cm2

AD0323-A05   Bourdon type spring gage stainless steel Ø 150 mm, range 0/1 Kg/cm2 –  accuracy 1% f.s. range 0-4 Kg/cm2

AD0323-A06     Bourdon type spring gage stainless steel Ø 150 mm, range 0/1 Kg/cm2 –  accuracy 1% f.s. range 0-0.4 bar, accuracy 1.6% (membrane type)

AD0323-A07      Gage calibration device

AD0323-A10      Digital gage (scale -1 to +3 bar with possibility to commute to psi, kg/cm2 and kPa – +/- 0.1 F.S. accuracy)

CAL001              PT100 simulator

CAL002              Officially certified PT100 simulator

CONSUMABLES

AD0323-C00       Pack of 10 O-ring seals to connect air chamber to pressure gage

AD0323-C01       Pack of 10 O-ring seals to connect air to liquid chamber

TA058C-N00       ASTM 58C thermometer (-34°C/+49°C)
