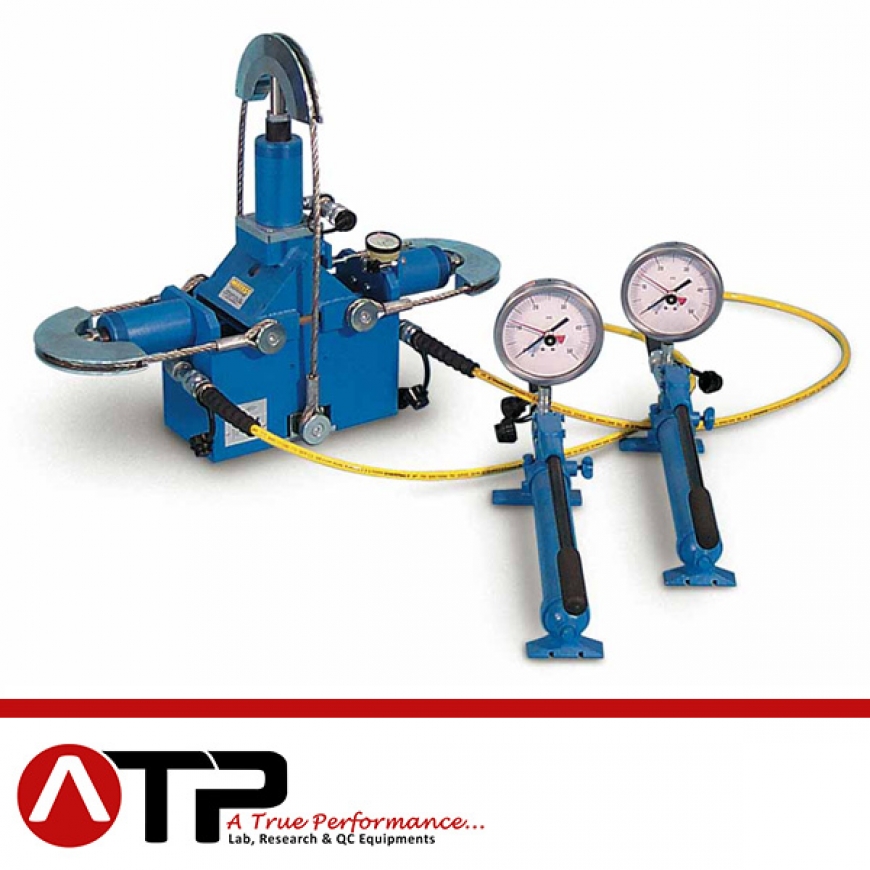

Rock Shear Box Apparatus

Used to determine the strength and slope stability of rock size max 115×125 mm or cores max. dia. 102 mm, both in the field and in the laboratory.
Complete with two horizontal rams for shear in two directions, vertical loading ram, two bourdon tube load gauges dia. 150 mm with quick release couplings, calibrated 50 kN x 1 kN division, two hand pumps with hydraulic connections and dial gauge 25×0.01 mm.

Dimensions: 600x250x460 mm
Weight: 46 Kg
