| Model |
Equotip 550 Portable Rockwell |
|---|---|
| Standard |
DIN 50157 |

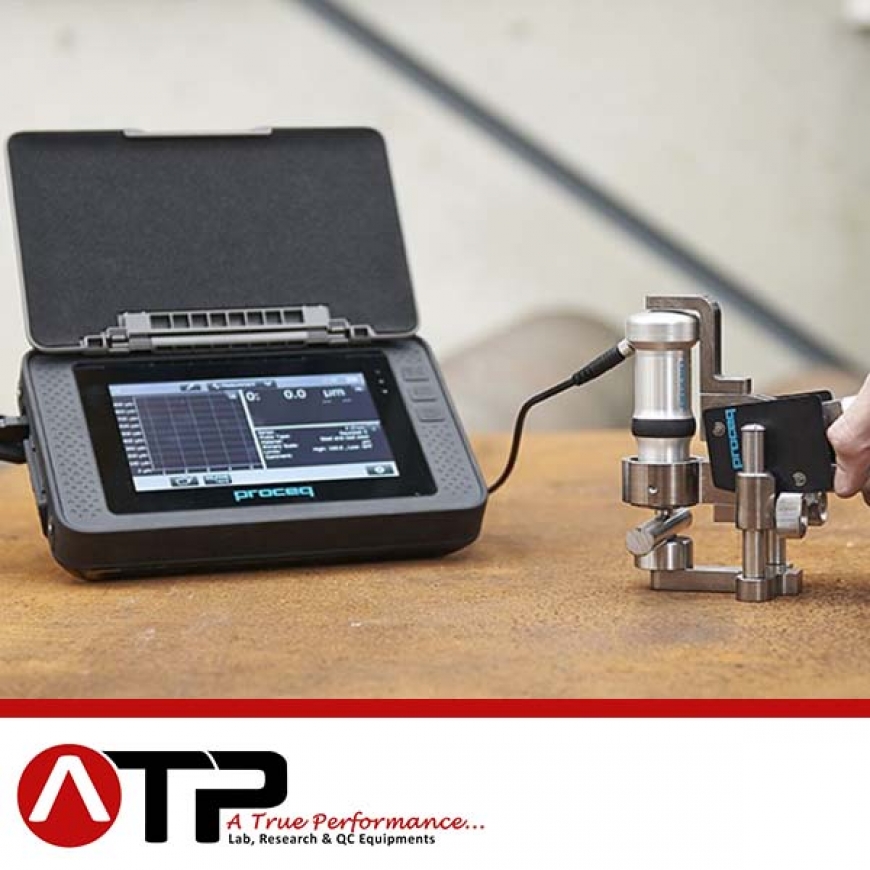

Rockwell Hardness Tester
|
Portable Rockwell hardness tester for scratch-sensitive, polished and thin parts. It features excellent sensitivity through small penetration of a few micrometer. Rugged touchscreen with enhanced software features and analysis functions. |
Combine with Leeb and UCI
Equally reliable, accurate and standardized but faster than stationary Rockwell hardness testers
Ready-to-go reports through powerful built-in reporting feature
|
Native Scale |
µm, µinch |
|
Measuring Range |
0 – 100 µm; 19 – 70 HRC; 35 – 1‘000 HV |
|
Measuring Accuracy |
± 0.8 µm; ~ ± 1.0 HRC |
|
Available Scales |
HB, HV, HRA, HRB, HRC, R15N, HR15T, HMMRC, MPA |
|
Available Probes |
Portable Rockwell (50N) |
|
Combination With Other Methods |
Leeb, UCI |
|
Average Roughness Ra (µm / µinch) |
2 / 80 |
|
Minimum Mass (kg / lbs) |
No requirement |
|
Minimum Thickness (mm / inch) |
10 x indendation depth |
Additional information
