| Model |
Alpha |
|---|---|
| Standard |
BS 6075, 5350, ISO 2555, 1652, ASTM 115, 789,1076, 1084, 1286, 1417, 1439, 1638, 1824, 2196, 2336, 2364, 2393, 2556, 2669, 2849, 2983, 2994 , 3232, 3236, 3716 |

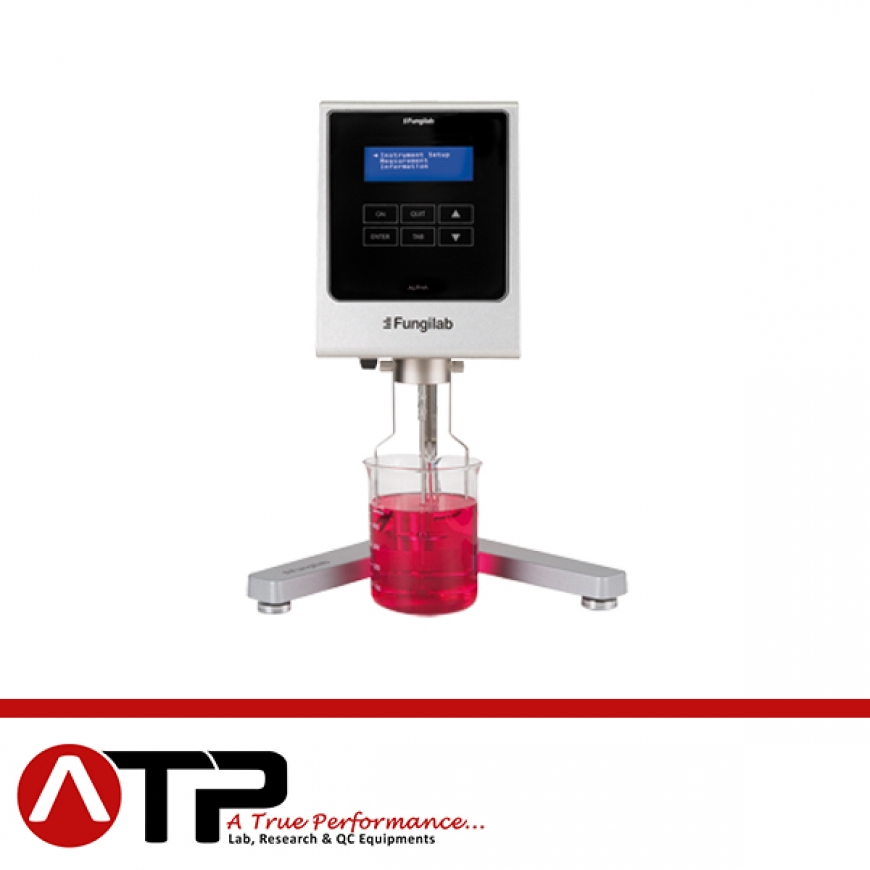

Rotational Viscometer – Alpha
Alpha series
Alpha series rotational viscometers allow fast and accurate viscosity readings. They are low budget and easy to use.
Features
4 lines LCD display and keyboard controls
Languages options
English / French / German / Catalan / Spanish / Italian / Japanese / Polish / Dutch / Portuguese
Sound alarm
Under or over range
Universal adapter
All accessories such as Brookfield (Optional)
Friendly user auto range
Display of maximum measurable limits
Displayed info
Viscosity (cP or mPa·s) % Torque
Spindle
Speed
Auto-test
It checks the internal function in order to make the unit ready to use
Viscosity Reading
Relative and absolute viscosity.
Other features
Unit converter SI to CGS.
AUTO-TEST with sound and visual malfunction alarm.
AUTO-RANGE function.
User-enabled calibration.
Spindles
AISI 316 stainless steel spindles, easily identified by number and letter when changed according to range of viscosity.
These are the standards our units follow:
BS: 6075, 5350
ISO: 2555, 1652
ASTM: 115, 789, 1076, 1084, 1286, 1417, 1439, 1638, 1824, 2196, 2336, 2364, 2393, 2556, 2669, 2849, 2983, 2994, 3232, 3236, 3716
Rotational Viscometer Alpha.pdf
|
Code |
Model |
Measuring Range (cP) |
Speed (r.p.m) |
Number of speeds |
| V100003 | ALPHA L | *1 – 2.000.000 | 0.3 – 100 | 18 |
| V100002 | ALPHA R | 100 – 13.000.000 | 0.3 – 100 | 18 |
| V100001 | ALPHA H | 200 – 106.000.000 | 0.3 – 100 | 18 |
Standard Delivery
Viscometer head with serial number / Stand, 3 levelling adjustment for stand / Boss head / Standard spindles / Spindle protector / Spindle rack / Power supply cable / Calibration Certificate / Operating manual
Additional information
