| Model |
Smart |
|---|---|
| Standard |
BS 6075, 5350, ISO 2555, 1652, ASTM 115, 789,1076, 1084, 1286, 1417, 1439, 1638, 1824, 2196, 2336, 2364, 2393, 2556, 2669, 2849, 2983, 2994 , 3232, 3236, 3716 |

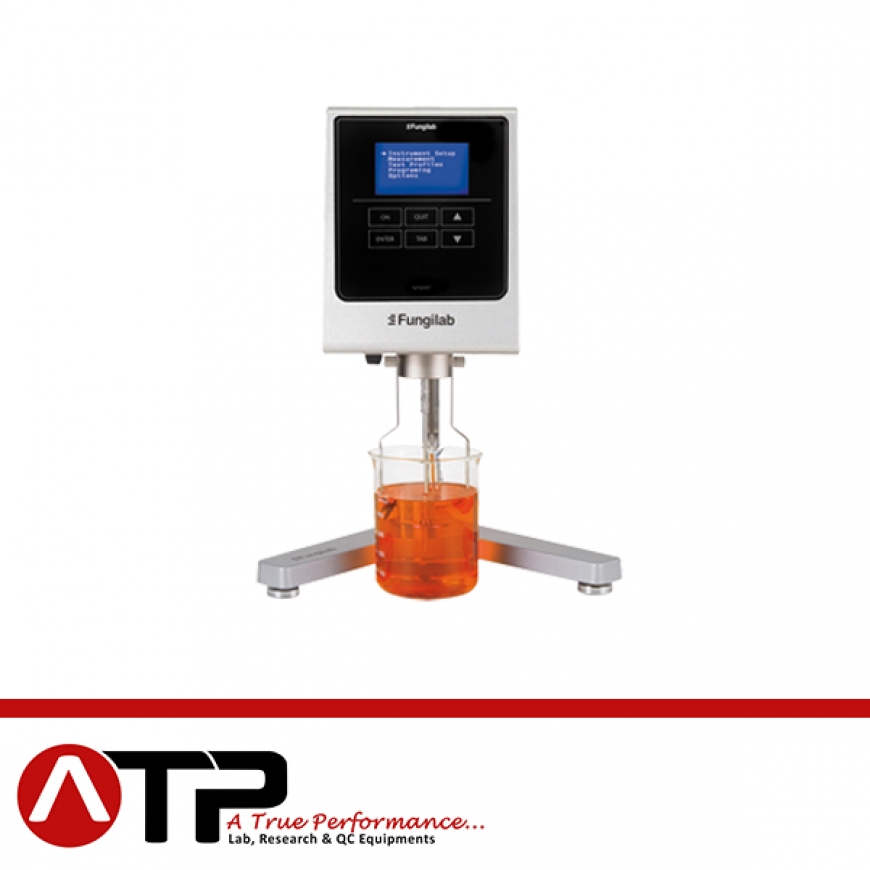

Rotational Viscometer – Smart
Smart Series
Indispensable in QC and R&D laboratories.
Features
Touch keyboard
Latest keyboarding technology, comfortable and easy to handle (6 keys)
Languages options
English / French / German / Catalan / Spanish / Italian / Japanese / Polish / Dutch / Portuguese
Program features
Time to Torque Time to Stop
Data displayed
Selected Speed
Selected Spindle
Viscosity readings (cP or mPa·s or cSt)
Percentage of Full Scale Range (%)
Sample Temperature (Optional, ºC or ºF)
Shear rate (with coaxial spindles) (s-1)
Shear Stress (with coaxial spindles) (N/m2)
Density (introduced by the user)(g/cm3)
Temperature reading by PT100
(Optional)
Universal adapter
All accessories
such as Brookfield
(Optional)
Graphic display
Provides huge range of graphical options
10 Working memories
Set up the unit and get it ready to be used every day choosing the memory you need
Viscosity readings
Absolute viscosity (cP or mPa·s)
Apparent Viscosity (cP or mPa·s)
Kinematic viscosity (cSt, mm2/sec)
(Density introduced by the user)
USB interface
Faster transfer data to the computer
Datalogger
(Software included)
USB allows data transfer to a Excel format
AUTO-TEST with sound and visual malfuction alarm
AUTO-ARANGE function
Other features
Time to torque: target torque pre-setting device.
Time to stop: target time pre-setting device.
Spindles
AISI 316 stainless steel spindles, easily identified by number and letter when changed according to range of viscosity.
These are the standards our units follow:
BS: 6075, 5350
ISO: 2555, 1652
ASTM: 115, 789, 1076, 1084, 1286, 1417, 1439, 1638, 1824, 2196, 2336, 2364, 2393, 2556, 2669, 2849, 2983, 2994, 3232, 3236, 3716
Rotational Viscometer Smart.pdf
|
Code |
Model |
Measuring Range (cP) |
Speed (r.p.m) |
Number of speeds |
|
V200003 |
SMART L |
*1 – 2.000.000 |
0.3 – 100 |
18 |
|
V200002 |
SMART R |
100 – 13.000.000 |
0.3 – 100 |
18 |
|
V200001 |
SMART H |
200 – 106.000.000 |
0.3 – 100 |
18 |
Standard Delivery
Viscometer head with serial number / Stand, 3 levelling adjustment for stand / Boss head / Standard spindles / Spindle protector / Spindle rack / PT100 probe (optional) / Power supply cable / Datalogger software in a CD / USB cable / Carrying case / Calibration Certificate / Operating manual
Additional information
