RPVOT / TFOUT turbine oils

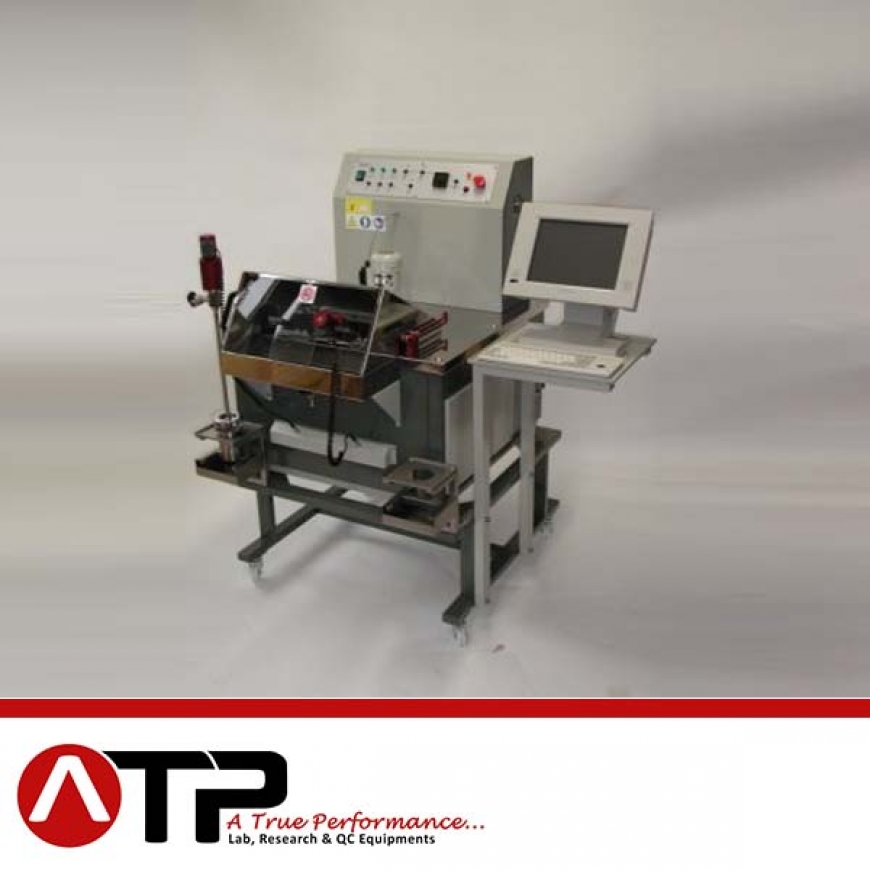

The apparatus RPVOT / TFOUT Turbine oils, consists of a benchtop case hosting a stainless steel tank with the rotating supports for two vessels: however, up to two units can be connected to a PC, realising a four-unit apparatus. Rotating heads with electronic pressure transducer are mounted on the vessels. The apparatus is connected to a PC where a software running under Windows acquires pressure from the vessels and plots them on a graph on the screen allowing data retrieval and report printout (printer supplied as option) at the end of the test. The apparatus can be equipped with a desktop PC or can be connected to a user-supplied PC.

• Enamel finished steel case, benchtop version.
• Stainless steel tank. Capacity: 70 liters.
• Stainless steel top cover.
• One support rack for the vessels.
• Electric stirrer to ensure temperature uniformity.
• Microprocessor controlled thermoregulator with PID action and built-in digital display 0.1 °C accuracy. Probe: Pt100 RTD. Regulation accuracy: ± 0.1°C.
• Working range: from ambient to 170°C.
• Stainless steel heaters, SSR controlled.
• Independent motor for each vessel, inverter controlled.
• Safety devices against overheating and low level.
• Signal conditioning board: it provides to transform the signals coming from the vessels into the RS-232C serial protocol making the apparatus connectable to a PC through serial port.
• Software running under Windows Xp/Vista/7 that shows on separate graphs the pressure data coming from the vessels and the temperature of the heating bath. Data are stored on the hard disk in .TXT file format and can be retrieved, compared and printed. Diagnostic and calibration routines permits to accurately verify and calibrate temperature, pressure and rotation speed.
• English written user manual. CE marked.
• For 220 V/50 Hz connections: 4000 W power consumption.

AD2272-100       Apparatus. Dimensions: 750 x 750 x 980 mm. Weight: 150 kg

ACCESSORIES RPVOT / TFOUT Turbine oils

AD2272-A00       Rotating vessel, AISI 316 stainless steel

AD2272-A01      Table support with swivelling castors

PC01                   Desktop PC

PRN01                Printer

CAL001               PT100 simulator

CAL002               Officially certified PT100 simulator

CONSUMABLES RPVOT / TFOUT Turbine oils

AD2272-C00       Gasket for vessel

AD2272-C02       Glass sample container

AD2272-C03       PTFE disc

AD2272-C04       Set of n°10 Copper coil

AD2272-C05       Spring

AD4742-C00       Glass sample container with PTFE disc for ASTM D 4742

AD4742-C01       Aluminium spacer

TA037C-N00       IP 37C thermometer (+144°C/+156°C)

TA102C-N00       ASTM 102C thermometer (+123°C/+177°C)
