Rust Preventing Characteristics Oil Bath

Rust Preventing Characteristics Oil Bath

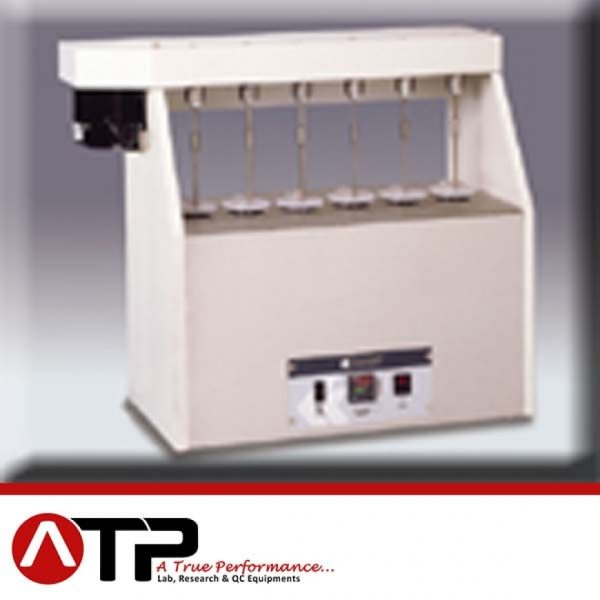

Constant temperature bath with stirrers for rust preventing characteristics tests. Stirs sample-water mixtures at 1000rpm and controls temperature with ± 0.5°C (± 1°F) stability. Immerses test beakers at the proper depth per ASTM specifications.

Microprocessor PID control provides quick temperature stabilization without overshoot, and the bath is protected by an overtemperature control circuit that interrupts power should bath temperature exceed a programmed cut-off point. Dual LED displays provide actual and setpoint temperature values in °C/°F format. Communications software (RS232, etc.), ramp-to-set and other enhanced features are available as extra cost options. Contact your Koehler representative for information.

Stainless steel stirrer paddles are driven by a ball bearing type motor through an improved pulley drive-roller bearing arrangement. Paddles can be raised and lowered for placement of sample beakers in the bath. Includes test specimens, holders and beaker covers for ASTM D665 or D3603 testing (see specifications and ordering information). Stainless steel bath includes perforated support shelf for beakers and two-position cover plate that adjusts for either ASTM D665 or D3603 testing. Long-lasting polyester drive belt improves reliability. Drive train components are protected by a removable steel guard. All exterior surfaces have stainless steel or chemical resistant polyurethane enamel finishes.

Testing Capacity: Six (6) 400mL sample beakers
Maximum Temperature: 104°C (220°F)
Temperature Control Stability: ±0.5°C (±1°F)
Drive Motor: 1/12hp induction motor
Bath Medium: 11 gal (41.6L) white technical oil

Included Accessories
ASTM D665 Models (K30160, K30165, K30166)
Steel Test Specimens (6)
Type 2 Plastic Specimen Holders (6)
Plastic Beaker Covers (6)

ASTM D3603 Models (K30161, K30167, K30168)
Horizontal Disc Test Assembly (6) consisting of:
plastic beaker cover
horizontal test specimen
vertical test specimen
fluorocarbon washer
plastic cap
stainless steel support rods and hardware

Electrical Requirements
115V 60Hz, Single Phase, 13.0A
220-240V 50 or 60Hz, Single Phase, 6.8A

Dimensions lxwxh,in.(cm)
32.75×14.25×27 (83x36x69)
Net Weight: 79 lbs (35.8kg)

Shipping Information
Shipping Weight: 150 lbs (68kg)
Dimensions: 16.2 Cu. ft.
