Rust protection by metal preservatives in the humidity cabinet

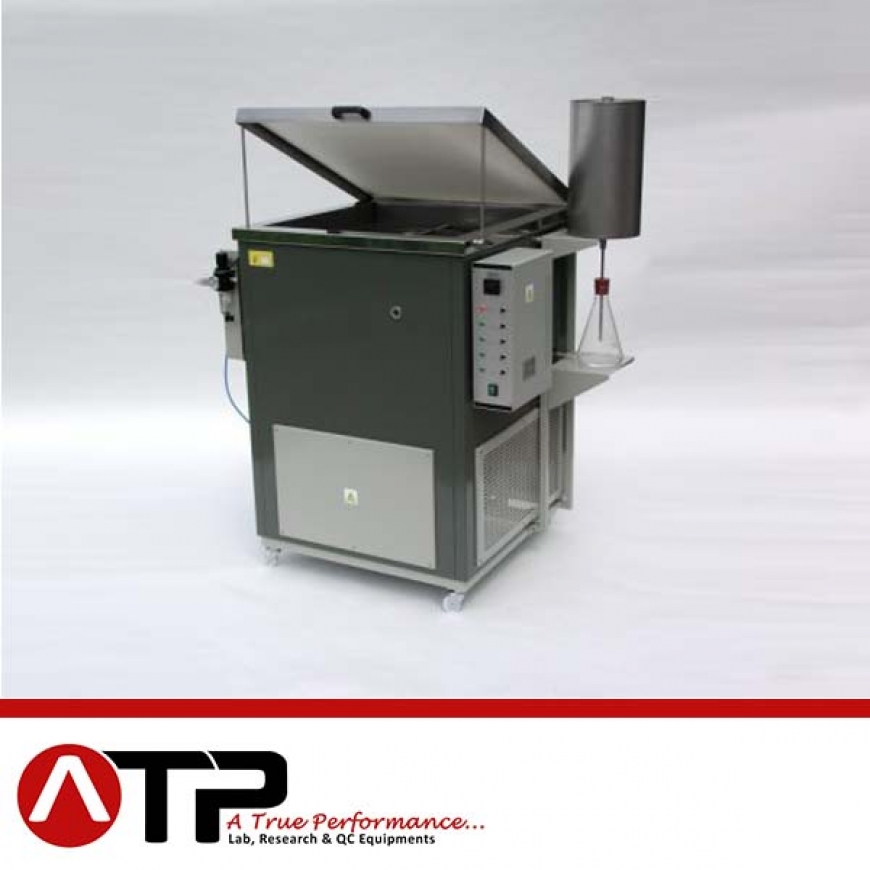

The apparatus consists of a floor mounted case containing a stainless steel tank and the rotating mechanism. A control box located on the right side contains all the electronics.

• Enamel finished case, floor mounted version with swivelling castors.
• Stainless steel tank complete with drain tube and valve.
• Device for automatic adjustment of the water level.
• Stainless steel heaters: dedicated switch for the auxiliary heater.
• Ring diffuser complete with 20 Alundum air diffuser stones.
• Air supply line consisting in trap and filter, pressure regulator, 0-400 kPa gage, high precision 250 mm scale flowmeter (scale 0-1200 l/h) and glass tower and the air pump.
• Stainless steel rotating stage for 0.33 rpm speed. Externally mounted gear reduced motor.
• Drip pan mounted under the rotating stage to catch oil and condensed water dripping from the panels.
• Stainless steel cover with two layers of desized cotton cloth.
• Microprocessor controlled thermoregulator with built-in digital thermometer 0.1 °C accuracy. The probe is a PT100 RTD. Regulation accuracy ± 0.5 °C at the working temperature of 48.9 °C.
• Safety device against overheating and low-level.
• English written user manual.
• For 220 V/50 Hz connections. Power consumption: 1500 W.
• Dimensions: mm 850 x 750 x 1100. Weight: 140 kg approx.
• CE marked

AD1748-100        Apparatus

ACCESSORIES

CAL001                PT100 simulator

CAL002                Officially certified PT100 simulator

CONSUMABLES

AD1748-C00        Set of 33 steel specimens

AD1748-C01        Blank specimen (dummy panel)

AD1748-C02        Silicon carbide paper, 240 grit (pack of 12 sheets)

AD1748-C03        Set of 20 Alundum air diffusers

AD1748-C04        Airplane cloth

TA009C-N00       ASTM 9C thermometer (-5°C/+110°C)
