| Model |
S276 KIT |
|---|---|
| Standard |
BS 1377:7, NF P094-071-2, CEN-ISO-TS 17892-10 ,AASHTO T235, NF P94-071-1, ASTM D3080-72 |

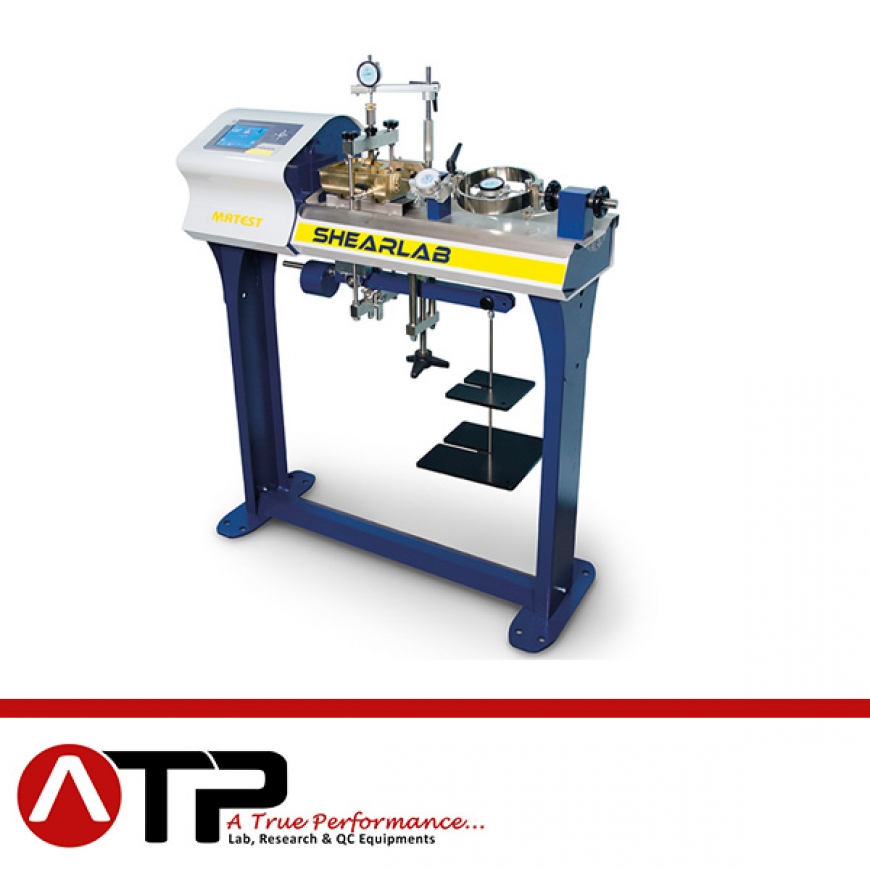

Shearlab Digital Shear Testing Machine
DIGITAL BASIC VERSION
SHEARLAB
Digital Shear Testing Machine, comprising:
S276-10N Shear Frame, with digital “Touch-Screen” microprocessor, complete with beam loading device, shear box case with adaptors, dial gauge supports.
S370-03S Load Ring, 3000N capacity with electric safety stop device (load rings of different capacities up to 5000N available on request).
S377 Dial indicator 25mm x 0.01mm for horizontal displacement.
S376 Dial indicator 10mm x 0.01mm for vertical displacement.
S273 KIT Set of 50 kg of slotted weights.
NOTE: Shear box, hollow punch, tamper “are not included” and have to be ordered separately (see accessories)
