| Model |
10400-0 |
|---|---|
| Standard |
ASTM D1322, BIS IS 1448 Part 31, BS 2000 Part 57, IP 57, IP 598, ISO 3014 |
Smoke Point Apparatus
Smoke Point Apparatus
The Seta Smoke Point Apparatus determines the smoke point of kerosine and aviation turbine fuel by measuring the maximum flame height prior to smoke formation and comparing the results with those of known standards.
The smoke point gives an indication of aromatic content and radiant heat transfer characteristics and has good correlation with IP 598.

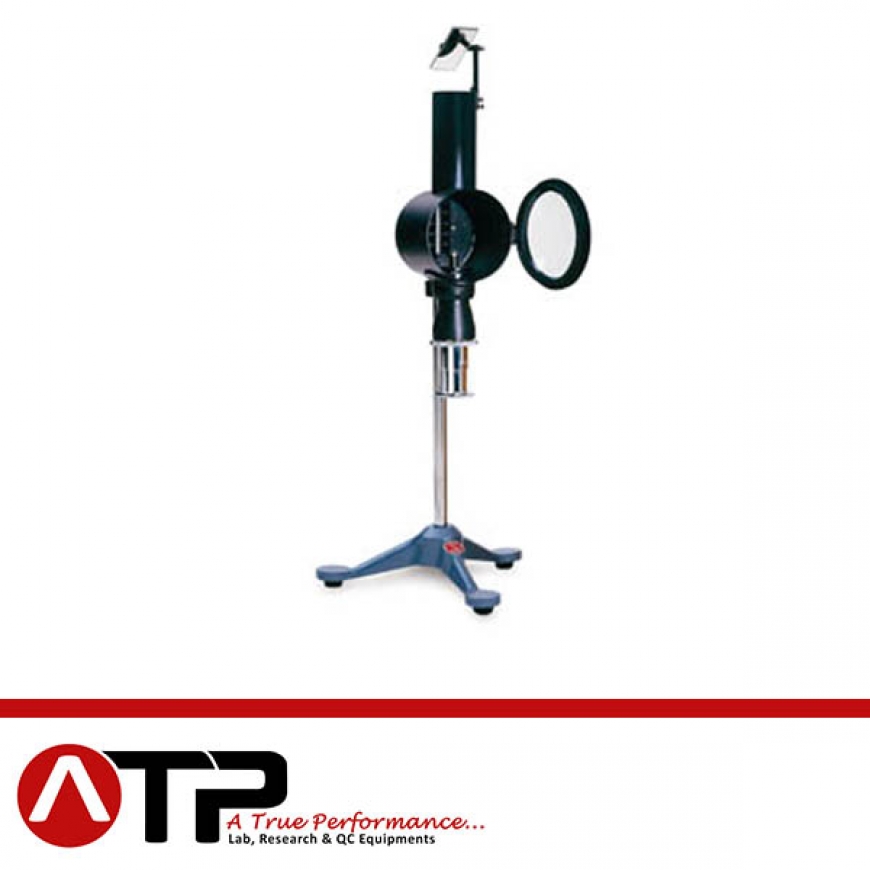

Comprises a tripod stand, lamp body, and chimney. The measuring scale is viewed through a curved glass window on the front of the instrument. A mirror (10450-0) can be attached to the chimney to aid smoke detection.
Supplied with: candle assembly and wick.
SPECIFICATIONS
|
Size (HxWxD): |
47 x 21 x 19cm |
|
Weight: |
2.6kg |
