| Model |
ES 302 , ES 303 , ES 304 , ES 305 , ES 306 , ES 307 , ES 308 , ES 309 |
|---|

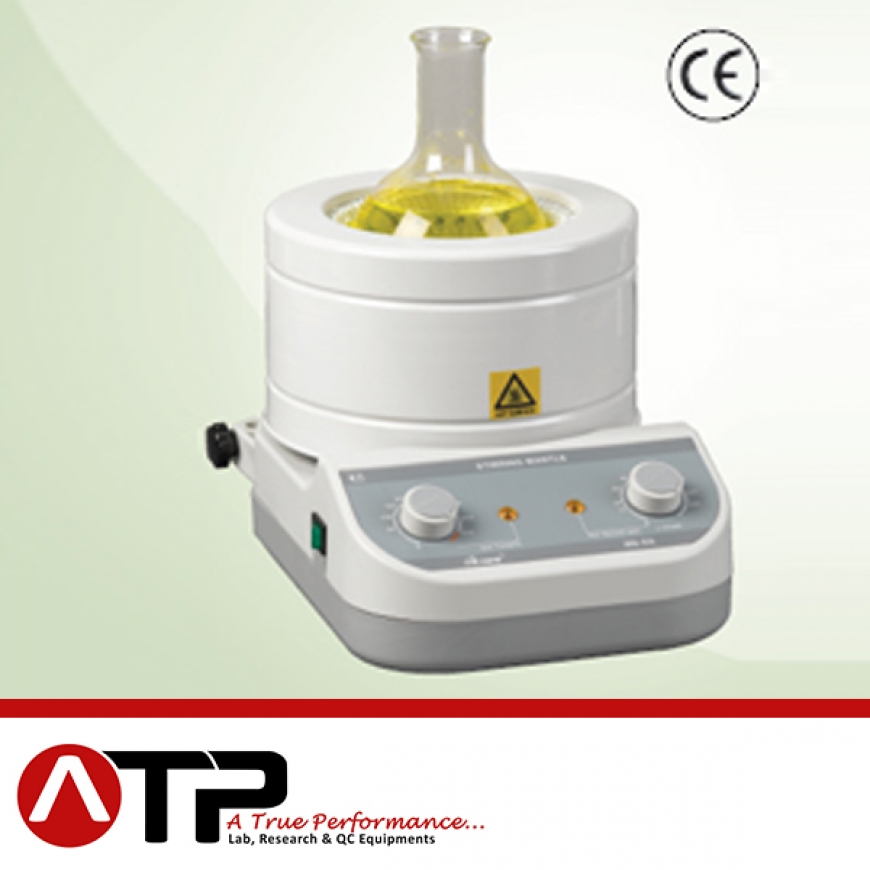

Stirring Mamtles (Analog)
Max. temperature 450℃
Stirring mantles for round bottom flask
Control speed and temperature independently and separately
Ceramic fiber with strong thermal resistance
Designed with stirring and heating at one body
Smooth start/stop function
Temp. Controller : Analog temperature controller(Built-in K type sensor)
Stirring speed : 100-1500 rpm
Stirring display : Scale(rpm)
Support Rod : Stainless steel Φ12,7 X 400mm (Option)
Support Rod Clamp : For 12.7mm dia. Support rods (with100ml~5000ml)
|
Model |
Capacity |
Watts |
Dimensions |
Internal |
Weight (Kg) |
|
ES 302 |
250ml |
150 |
162×256×162 |
60 |
2.2 |
|
ES 303 |
500ml |
260 |
192×276×177 |
75 |
2.5 |
|
ES 304 |
1000ml |
380 |
214×298×187 |
85 |
2.8 |
|
ES 305 |
2000ml |
500 |
248×332×214 |
115 |
3.4 |
|
ES 306 |
3000ml |
600 |
274×358×220 |
125 |
4.1 |
|
ES 307 |
5000ml |
800 |
316×400×244 |
145 |
4.5 |
|
ES 308 |
10000ml |
1300 |
390×470×300 |
||
|
ES 309 |
20000ml |
2000 |
460×540×340 |
