STV(TAR) Viscometer

Measure of the viscosity by determining the time of efflux of 50ml of a cutback bitumen, at 40°C (104°F), through a 10 mm orifice with efflux times in the range 15 to 500 sec.
Specifies a method for the determination of the efflux time of petroleum cut-back and fluxed bitumens in seconds using an efflux viscometer

For the determination of the efflux time at 25°C (77°F) of petroleum cut-back and fluxed bituminous binders in seconds using an efflux viscometer. Alternative test temperatures are 40°C (104°F) 50°C (122°F) and 60°C (140°F)

For the determination of the efflux time at 40°C (104°F) of bituminous emulsions in seconds using an efflux viscometer. Alternative test temperature is 50°C (122°F)

For the determination of the efflux time at 25°C (77°F) of petroleum cut-back and fluxed bituminous binders in seconds using an efflux viscometer. Alternative test temperatures are 40°C (104°F) 50°C (122°F) and 60°C (140°F)

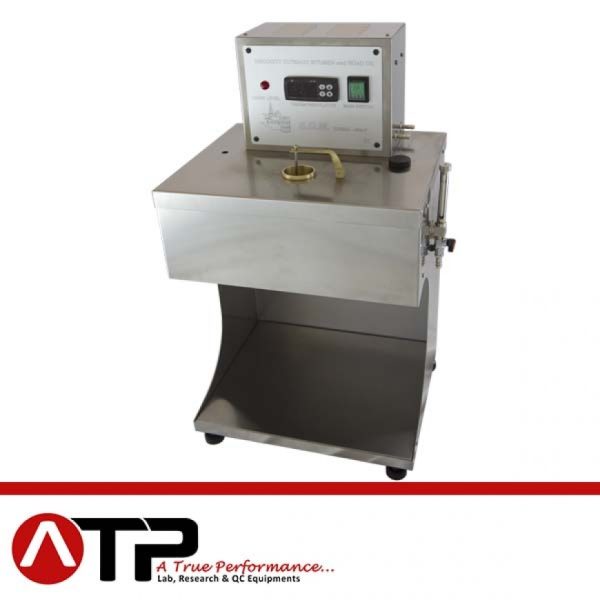

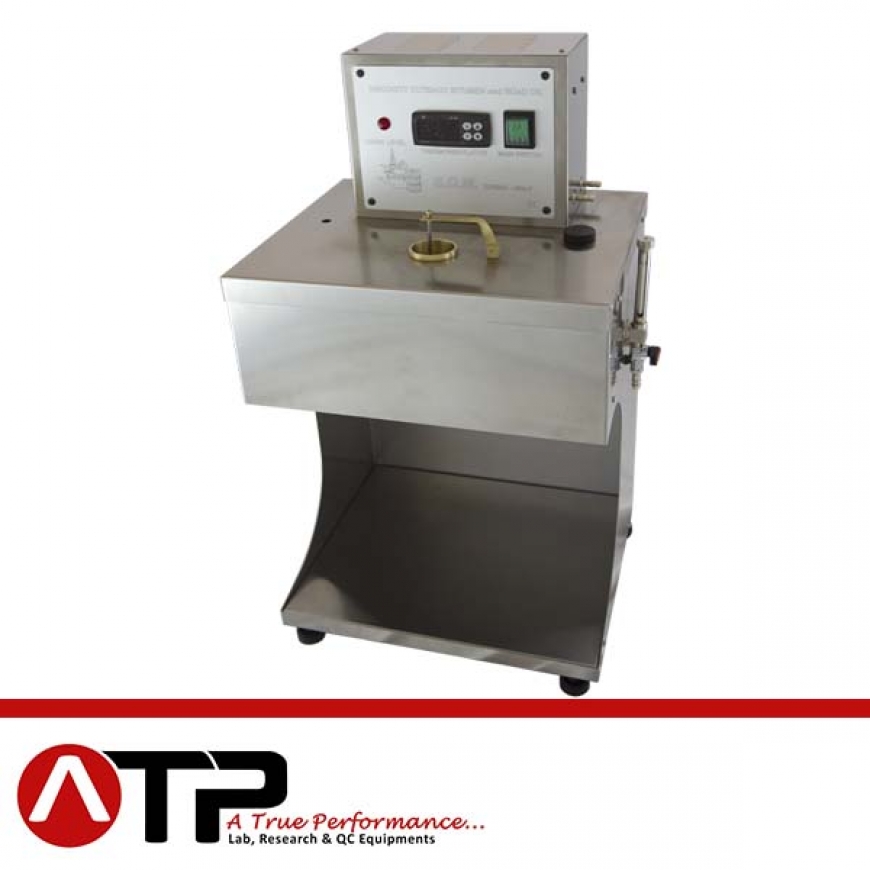

Structure made of stainless steel, with front opened jacket, equipped with: bath with capacity of about 7 liters, calibrated brass oil cup with orifice Ø10mm, fitted with closing-ballended rod and level indicator. Temperature regulation by digital thermoregulator PID with PT100 probe class A and overtemperature alarm, stainless steel heater, cooling coil, motor stirrer, insulated double wall, external level indicator and safety internal level for low liquid with warning lamp.
