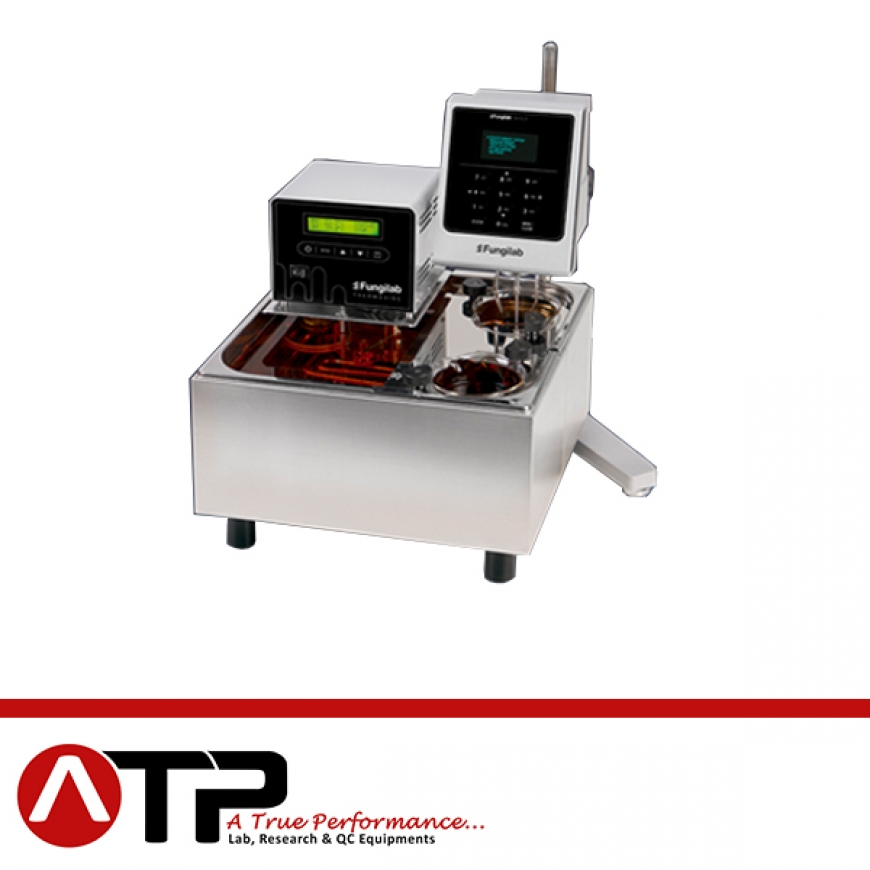

Thermovisc 200 / 12L

Digitally controlled immersion Thermostats

Features

The following parameters can be configured and shown on the LCD display:

– Temperature:

– Maximum and minimum temperature limits. Heating element made of stainless steel INCOLOY resistant to high temperatures and corrosive environments.

– Circulation Pump with adjustable flow rate suitable for external temperature control for Viscometers, polarimeters and refractometers, etc.

– Cooling coil to maintain ambient temperatures using tap water.

– Select °C or °F

– Display resolution 0.1 °C

– External temperature (Probe). External temperature control connection using a Pt 100 probe.

– Over temperature set limits for alarm.

– Calibration Low liquid level indicator.

RS-232 interface for computer control or printing data.

External metal case coated in a corrosive resistant epoxy. All parts in contact with liquid are made of AISI 304 stainless steel.

Maximum working volume to maintain temperature: 20 litres.

A clamp and finger screw attach the unit to the tank, alternatively the extendible support bridge accessory can be used.

Minimum depth of the tank: 14cm.
