| Model |
RNB117 |
|---|---|
| Standard |
ASTM D1754 , ASTM D6 , AASHTO T179 , AASHTO T47 , EN 13303 , EN 12607-2 , BS 2000 , UNE 7110 , CNR N. 50 , NF T66-011 |

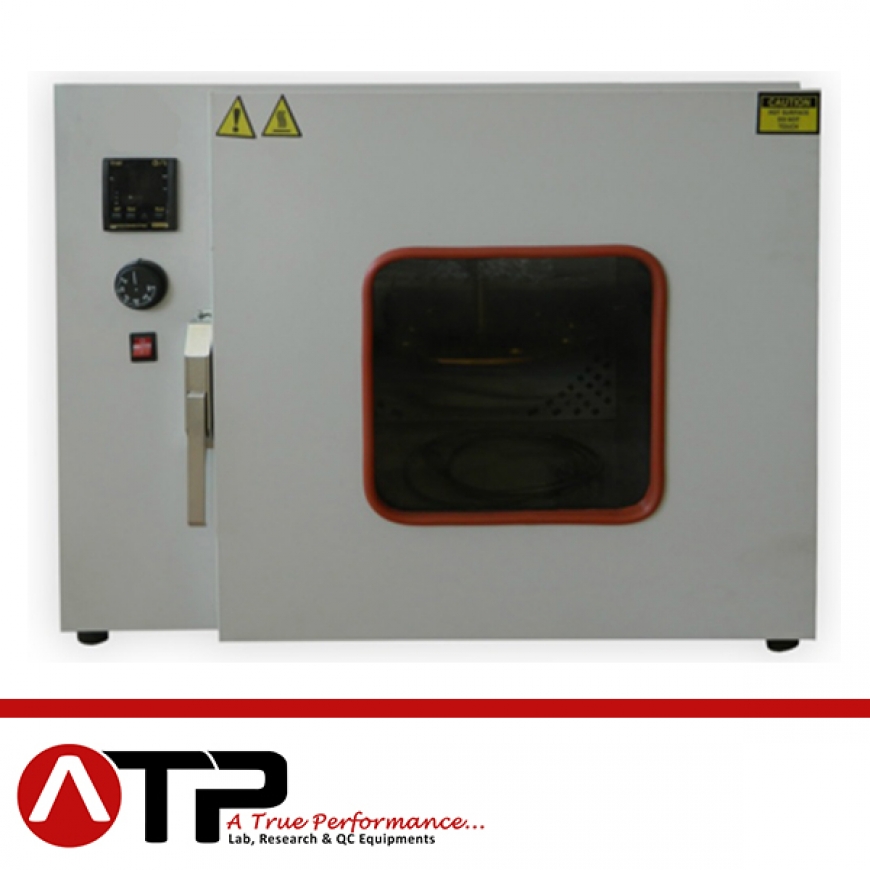

Thin Film Oven Test
Standard : ASTM D2872 / AASHTO T240 / CNR N°54
– Utilized to measure the air and heat effect on a moving film of asphaltic semisolid materials.
– External frame and internal chamber are stainless steel made with insulated fiberglass intermediate chamber.
– Provided of large glass door for inspections.
The oven must be connected to a suitable air pressure supply.
– Supplied complete with precision digital thermostat to maintain 163°C temperature, control thermometer ASTM 13C, ventilation device, set of eight glass containers dia. 64×140 mm.
– The oven is equipped of a dual safety thermostat to prevent accidental over-heatings.
– Power supply: 230 V 1 ph 50 Hz 1300W
– Dimensions: 620x620x910 mm
– Weight: 55 Kg
Additional information
