Touch Screen Electromechanical Machine 200 kn

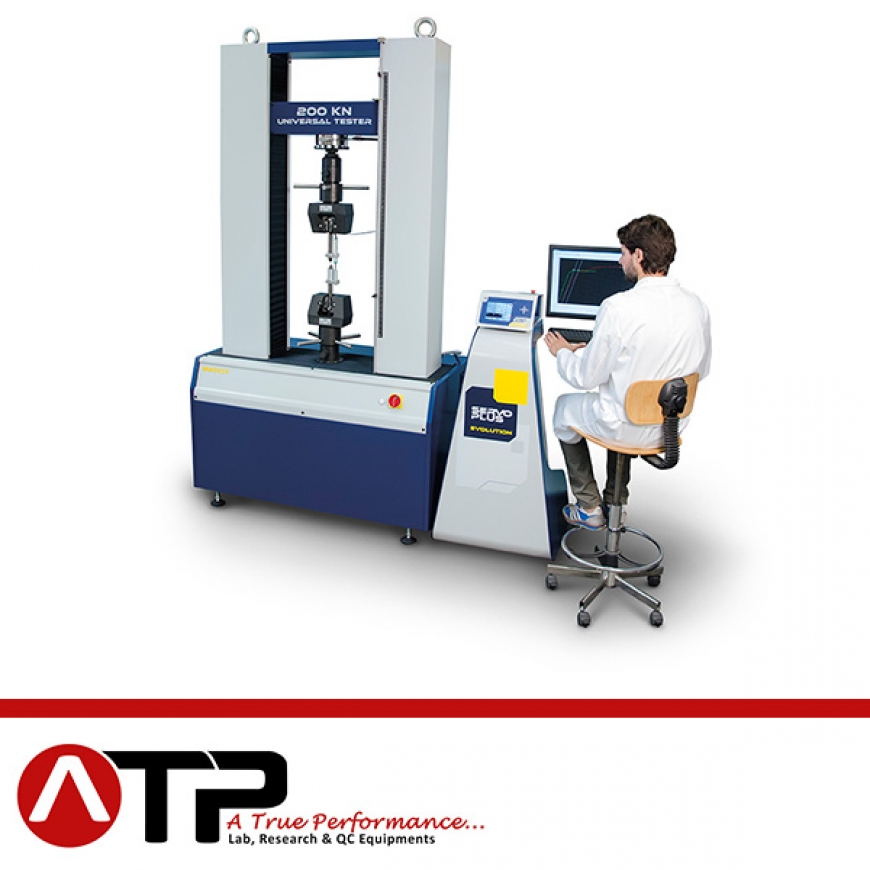

Servo-controlled electromechanical “touch-screen” universal testing machine, 200 kN.

MAIN FEATURES

– Load capacity: 200 kN
– Test speed: Minimum 0.01mm/min – Maximum 480 mm/min
– Positioning speed: 480 mm/min
– Cross bar travel (*): 1150 mm/min
– Opening of the testing chamber: Vertical (**) 1280 mm – Horizontal 600 mm
– Maximum distance between the tensile heads (***): 480 mm
– Dimensions in mm: 2340 (height) – 1370 (width) – 700 (depth)
– Weight: 1150 kg
– Power supply: 400V 3ph 50Hz
– Absorbed power: 3000 W

For further information, please consult the category electromechanical servo-controlled universal machines for tensile tests on steel.

NOTES:
(*) The cross bar travel is referred to the distance between the upper surface of the base and the lower surface of the cross bar and it doesn’t include the load cell, the seizing devices, the different equipments etc.
(**) The vertical opening of the testing chamber is the distance between the upper surface of the base and the lower surface of the crossbar, without load cells, seizing devices and other devices.
(***) The maximum distance between the tensile heads is the distance between the grips when the crossbar is at its upper dead point (load cell is installed). Practically it is the free length of the specimen between the tensile heads.
