| Model |
Equotip 550 UCI |
|---|---|
| Standard |
DIN 50159, ASTM A 1038 |

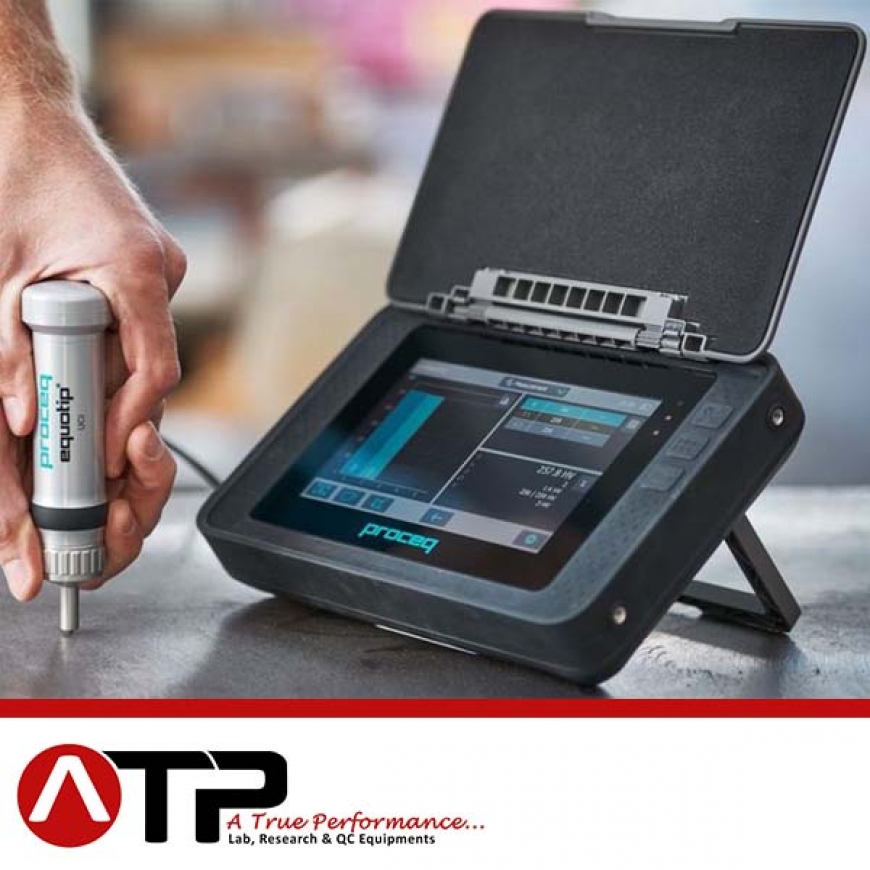

UCI Hardness Tester
Flexible UCI hardness tester for fine-grained material with any shape and heat-treated surfaces. The patented adjustable test load enables a wide range of applications. Rugged touchscreen with enhanced software features and analysis functions
Combine with Leeb and Portable Rockwel
On-screen feedback to reduce measurement inaccuracies caused by the operator
Ready-to-go reports through powerful built-in reporting feature
|
Native Scale |
HV (UCI) |
||||||
|
Measuring Range |
20 – 2000 HV |
||||||
|
Measuring Accuracy |
± 2% (150 – 950 HV) |
||||||
|
Available Scales |
HB, HV, HRA, HRB, HRC, HR15N, HR15T, MPA |
||||||
|
Available Probes |
UCI (Adjustable HV1 – HV5) |
||||||
|
Combination With Other Methods |
Leeb, Portable Rockwell |
||||||
|
Average Roughness Ra (µm / µinch) |
12.5 / 500 |
||||||
|
Minimum Mass (kg / lbs) |
0.3 / 0.66 |
||||||
|
Minimum Thickness (mm / inch) |
5 / 0.2 |
||||||
|
Display |
7” color rugged touchscreen unit (800 x 480 pixels) with dual core processor |
||||||
|
Memory |
Internal 8 GB flash memory (> 1’000’000 measurements) |
||||||
|
Connections |
USB host / device and Ethernet |
||||||
