| Model |

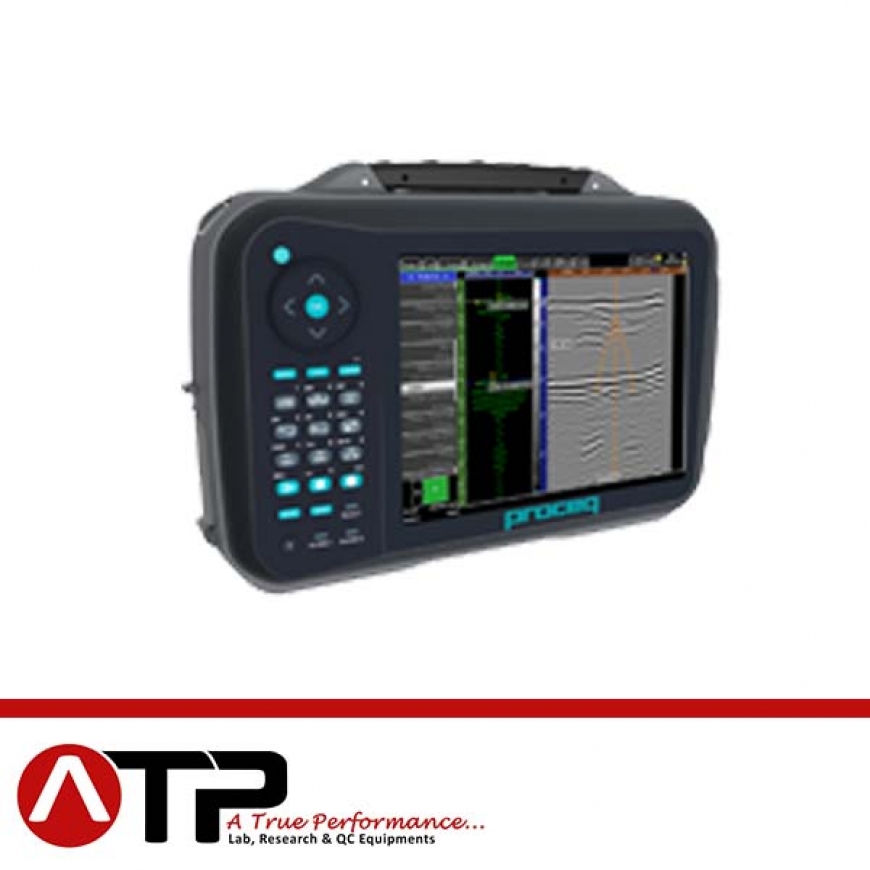

Proceq Flaw Detector 100 UT/ TOFD |
|---|---|
| Standard |
EN 12668-1 |
Ultrasonic flaw detector and thickness gauge
The Proceq Flaw Detector 100 has a large display to show the A-scans from the two onboard channels. The use is simple and efficient due to wizards and an active help file. 3D scan plans assist in creating inspection procedures and analyzing the results.
The upgrade to Proceq Flaw Detector 100 TOFD enables the TOFD application to deliver the highest performance. Two channels make it possible to inspect thick parts in a single pass. High frequency probes can be used to get accurate defect sizes.
|
Configuration |
2 UT Channels |
|
Transducer Socket |
Lemo 1 and BNC |
|
Pulse Voltage |
-100 to -450 V (in steps of 10 V) |
|
PRF |
1 to 1500 Hz |
|
Gain Range |
100 dB (0.1 dB steps) |
|
Bandwidth |
200 kHz to 22 MHz |
