| Model |

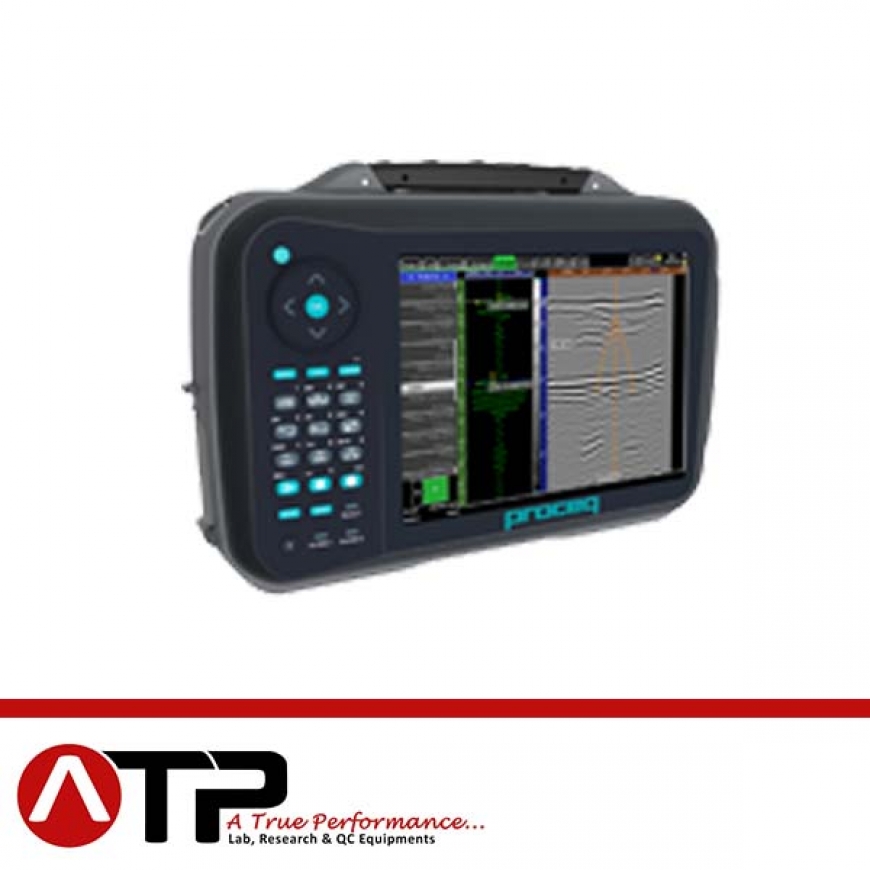

Proceq Flaw Detector 100 PA 16:16 / PA 16:64 |
|---|---|
| Standard |
EN 12668-1, ISO 18563-1 |
Ultrasonic phased array flaw detector
The upgrade to Proceq Flaw Detector 100 PA 16:16 will bring a broad spectrum of applications that can be setup, performed and analyzed using the inbuilt wizards and user guides. For users wishing to learn about the phased array capabilities, or to show a sectoral scan.
The upgrade to Proceq Flaw Detector 100 PA 16:64 allows even more flexibility in your setup. The additional multiplexing is beneficial for performing L-scans in corrosion mapping and when testing the integrity of large composite panels
|
Pulse Voltage |
UT/TOFD: -100 to -450 V (in steps of 10 V) PA: -25 to -75 V (in steps of 5 V) |
|
PRF |
UT/TOFD: 1 to 1500 Hz PA: 1 to 5000 Hz |
|
Gain Range |
UT/TOFD: 100 dB (0.1 dB steps) PA: 76 dB (0.1 dB steps) |
|
Bandwidth |
UT/TOFD: 200 kHz to 22 MHz PA: 200 kHz to 14 MHz |
