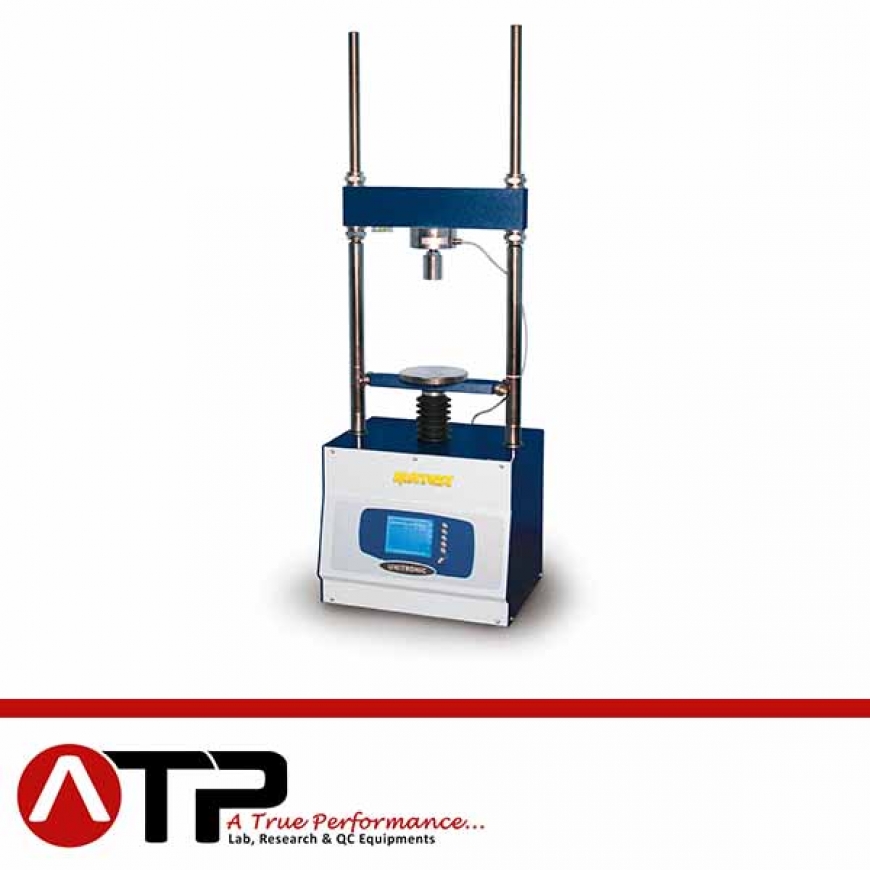

UNITRONIC COMPRESSION 50KN / TENSILE 25KN

The Unitronic frame S205N is modified and improved to perform also tensile tests with max. capacity of 25 kN.

Note: this modification is possible only in MATEST factory.

UNITRONIC, specific applications:

1 – Auto SCB semicircular bend
Standards: EN 12697-44
Test development with load/displacement control
Needed accessories:
B054-kit Semicircular Bending Jig Comprises:
B054-01 SCB kit
B054-51 SCB wear plate (2 pieces)
S205-11SP Loading piston with sphere
S337-34 Strain gauge load cell 50kN capacity

2 – Tensile test on mortar briquettes “8” shaped

Standards: ASTM C190 / ASTM C307 / AASHTO T132
Test development with load control
Needed accessories:
S337-32 Tensile/Compression strain load cell 10kN capacity
S205-07 Tensile jaws “8” shaped for mortar briquette
S205-08N Software for tensile test
E111 Briquette mould

3 – Tensile tests on metals, plastics, wires, textiles etc.

Standards: ASTM D2166 / BS 1377:7 / AASHTO T208
Test development with load control
Needed accessories:
S337-36 Tensile strain load cell 25kN capacity
H005-11 Tensile heads (upper and lower)
S205-09 Coupling for tensile heads installation
H005-21 Flat seizing grips for flat specimens 1 – 10mm thickness by 25 mm max. width and round specimens dia. 3 – 5 mm.
H005-31 “V” shape seizing grips for round specimens dia. 5 – 12 mm.

The Matest General Catalogue 2014 lists devices to test plastics, wires ropes, flexural and bending tests and various models of extensometers.

On request it is also possible to equip the Unitronic frame 205-05N with devices for tensile tests of different materials, within the 25kN max. capacity load.

Note: Needed accessories listed above are common for different tests. We recommend to check them when ordering to avoid duplications.
