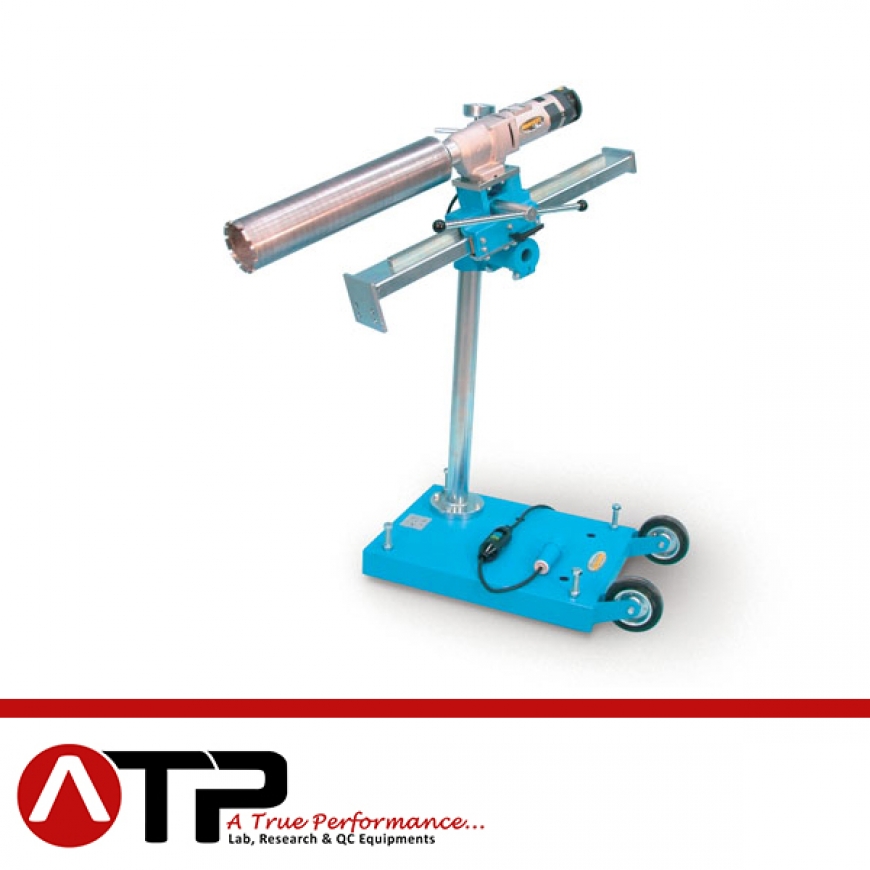

Universal-Electric-Core-Drilling-Machine

Comprising:
C321-10 UNIVERSAL DRILLING FRAME COMPLETE, but without electric motor
C330 ELECTRIC MOTOR COMPLETE
Coring angle: 0 to 360°

The excursion group is rectified to assure a very soft and accurate drilling movement. The excursion is 550 mm.
Electric motor at three speeds: 670, 1140, 1580 rpm with speed reducer, provided of friction device and switch to CE Safety Directive.
The height of the vertical column is 1000 mm and it is pre-built for extension column connection (accessory mod. C322-01).

Power supply: 230 V 1ph 50/60Hz 2200 W
Dimensions: 440x750x1300 mm
Weight: 85 kg

– Three speed electric motor with friction device
– Connection to coolant water supply
– Rectified excursion group
– Coring angle: 0 to 360°
– Robust, compact, wheels mounted
