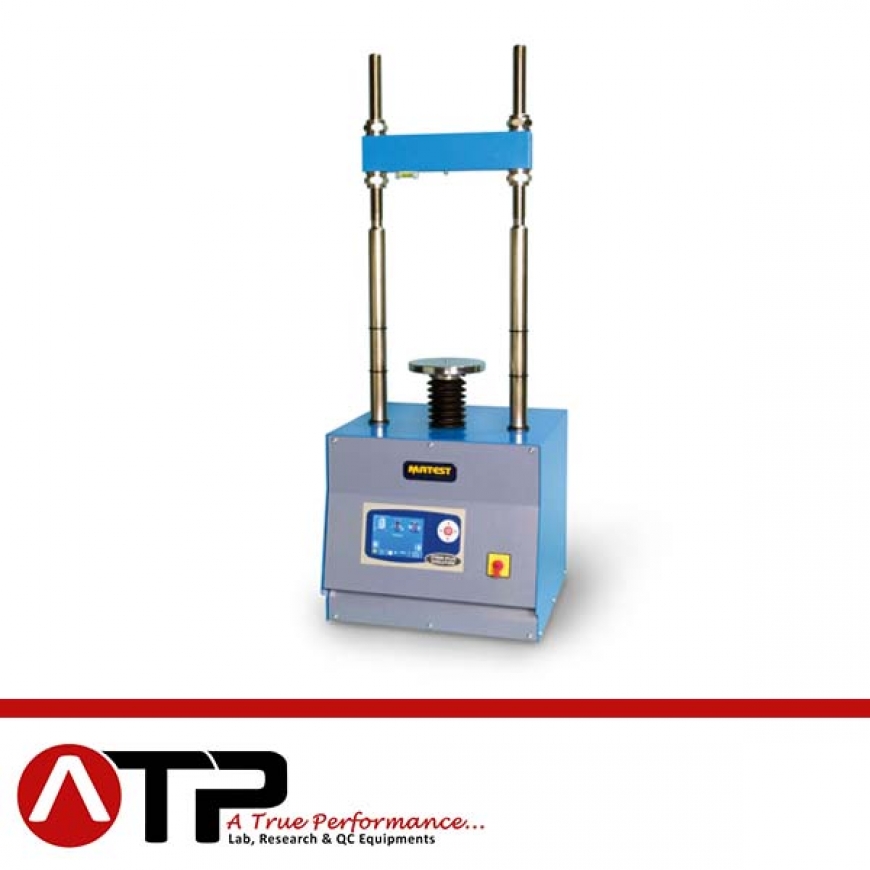

UNIVERSAL MULTISPEED LOAD FRAME 50KN, DIGITAL, TOUCH-SCREEN

This motorized machine with electronic digital “touch-screen” controlled by microprocessor, is suitable to perform all the tests where the requested speed rate is within: “0.05 to 63 mm/min” with max. load of 50 kN
It can therefore perform:
– Marshall test with rate of 50.8 mm/min.
– Splitting tensile test on Marshall specimens.
– Unconfined, CBR, Quick Triaxial tests.
Supplied “without” load ring and accessories which have to be ordered separately (see accessories).
Power supply: 230V 1ph 50/60Hz 750
Dimensions: 480x450xh1280 mm
Weight: 140 kg

ACCESSORIES:

 MARSHALL test, 4“ Ø
S212-05 Load piston
B046N Stability mould 4“ Ø
B047 Flow meter
B047-01 Dial gauge for flow meter
S370-08S Load ring 30kN with electric stop safety device
S374 Brake device to hold max. load

 MARSHALL test 6” Ø (with S212N frame only)
STANDARD: ASTM D5581-96
S212-05 Load piston
B046-02 Stability mould 6” diameter
B047 Flow meter
B047-01 Dial gauge for flow meter
S370-10S Load ring 50kN with electric stop safety device
S374 Brake device to hold max. load

NOTE: The frames S212 and S213 are suitable also for tensile splitting tests
(EN 12697-23) by using the specific devices.
