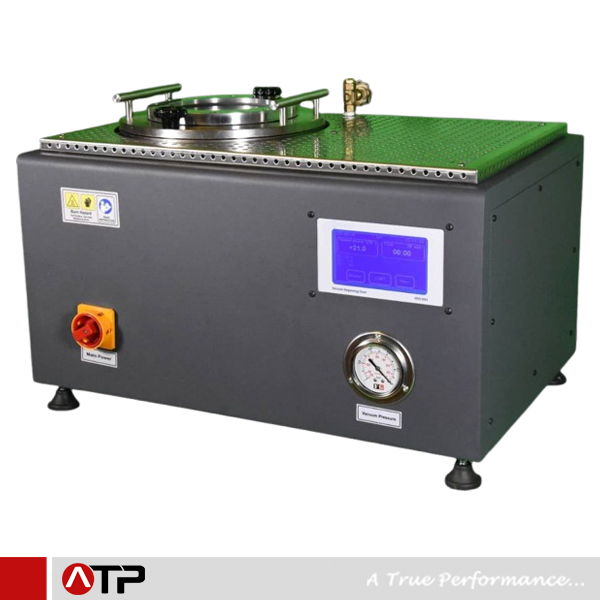

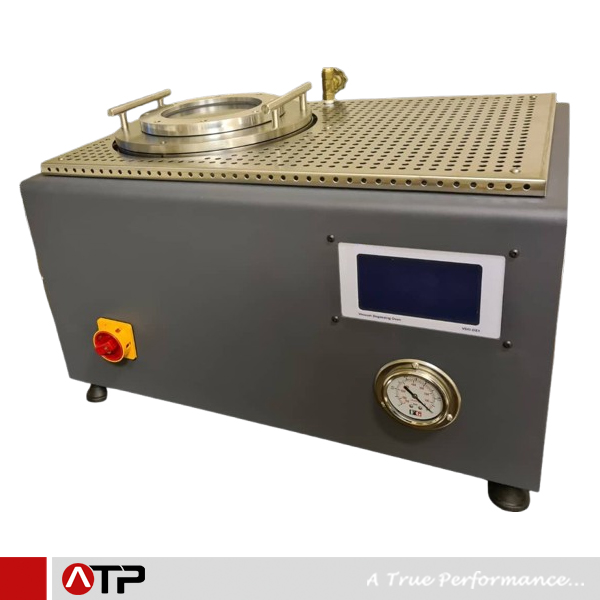

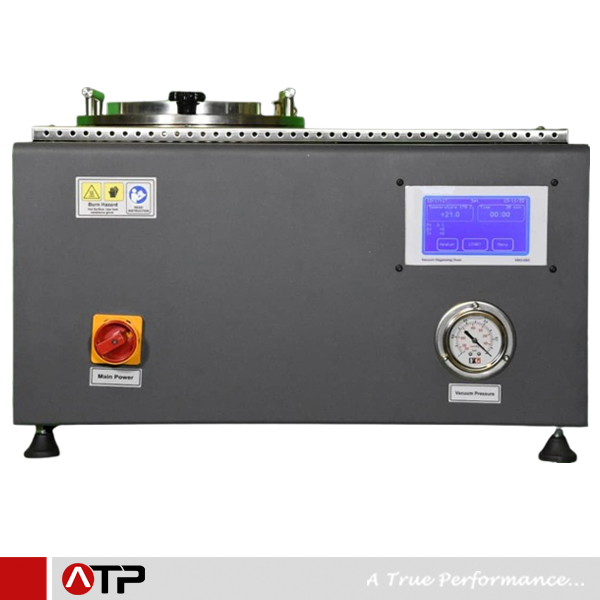

VDO — Vacuum Degassing Oven for PAV
Standard : AASHTO R28 — ASTM D6521
VDO is used for the rapid removal of the entrapped air within the aged
specimens according to ASTM D 5621 The aged specimens are placed
in the unit for preheat period at temperatures 170 degrees Celsius and be
Soaked for 15 Minutes in the same Temp and automatically vacuumed
for 30 minutes for the air bubbles to leave the specimen.
Specifications:
Touch screen display
Ability to control temperature using PID control
Ability to go through test procedure automatically
Working Vacuum pressure up to -0.8 Bar
Working temperature from ambient to 200 degrees Celsius
Stainless steel cylinder
Safety features including Thermostat
Specimen Cups and holder
| Model |
02.091.01 |
|---|---|
| Standard |
ASTM D6521, AASHTO R28 |
| Manufacture By |
ATP |
