Vapor pressure of liquified petroleum gases

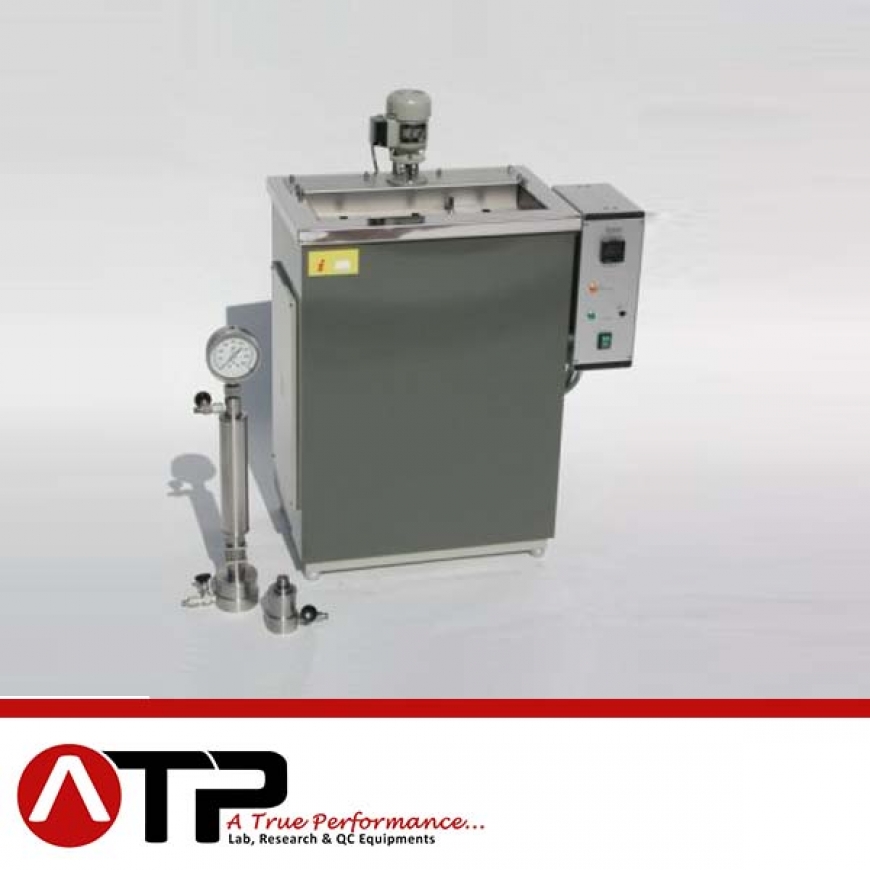

The apparatus consists of a floor mounted water bath with a support for three vapour pressure cylinders.

• Enamel finished steel case.
• Stainless steel water bath suitable for the immersion of three vessels. Drain cock on the rear of the apparatus.
• Electric stirrer.
• Stainless steel heater.
• Microprocessor thermoregulator with built-in digital display 0.1°C accuracy. The probe is a PT100 RTD. Regulation accuracy ± 0.1°C. Working range: from ambient to 80°C.
• Safety device that cuts off the power supply and lights a lamp on the control panel in case of overheating of the liquid in the bath or lowering of the water level.
• Easy access control box placed on the right side of the apparatus containing all the electronics: anodized aluminium control panel with english written indications.
• English written user manual.
• For 220 V/50 Hz connections. Power consumption: 1000 W.
• Dimensions (l x w x h ): mm 500 x 300 x 850 approx.  Weight 50 kg approx.
• CE marked.

AD1267-100        Apparatus

ACCESSORIES

AD1267-A00        LPG vapor pressure cylinder

AD1267-A01        33 1/3% lower chamber

AD1267-A02        Pressure gage Bourdon type spring gage Ø 114 mm, range 0/100 psi

AD1267-A03        As above, range 0/300 psi

AD1267-A04        As above, range 0/600 psi

CAL001                PT100 simulator

CAL002                Officially certified PT100 simulator

CONSUMABLES

AD1267-C00        Gasket (to connect air chamber to pressure gage).Pack of 10

AD1267-C01        Gasket (to connect upper chamber to straight through valve). Pack of 20

AD1267-C02        Gasket (to connect lower chamber to straight through valve). Pack of 20

TA018C-N00       ASTM 18C thermometer (+34/+42°C)

TA065C-N00       ASTM 65C thermometer (+50/+80°C)
