| Model |
E055N |
|---|---|
| Standard |
UNE 80102, DIN 1196, DIN 1168 ,EN 480-2, AASHTO T131 ,NF P15-431, NF P15-414 ,EN 13279-2 (GYPSUM), ASTM C191, ASTM C187 ,BS 4550, EN 196-3:2005 |

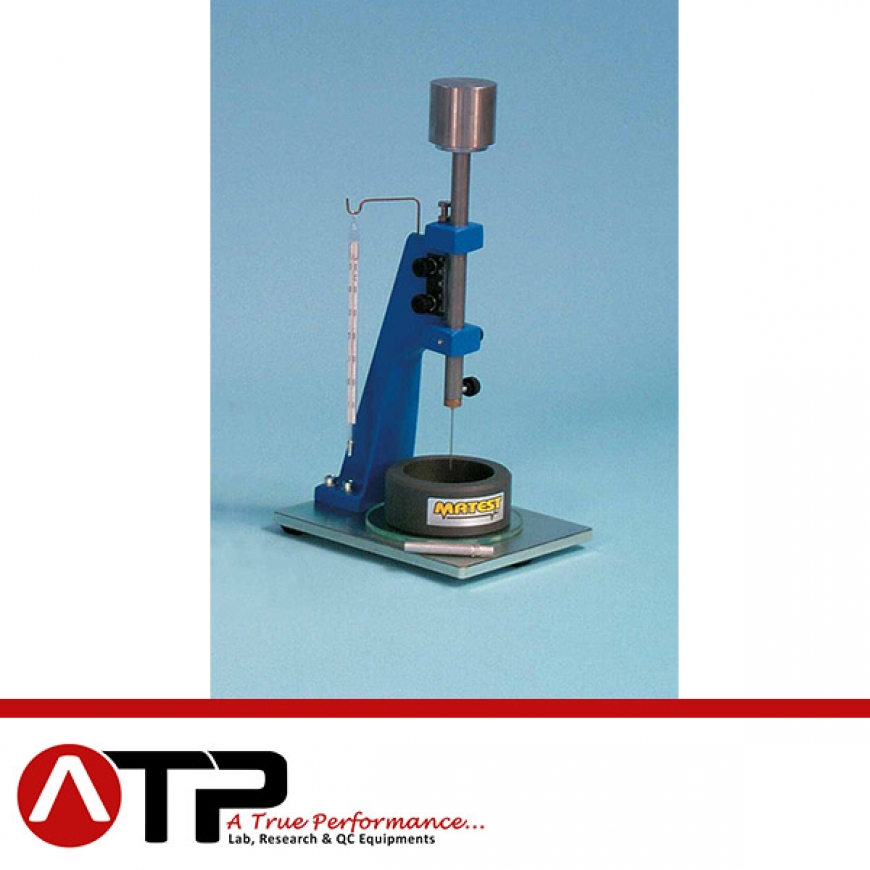

Vicat Apparatus
The instrument consists of a metallic frame, graduated scale with index, sliding probe of 300 g, consistency plunger dia. 10 mm, glass base plate.
The needle and conical mould are not included and have to be ordered separately.
Dimensions: 160 x 200 x 300 mm
Weight: 5 Kg
“NEEDED” ACCESSORIES:
E046N Needle, hardened dia. 1,13 mm EN 196-3:2005
E046-01N Needle, hardened dia. 1 mm ASTM – AASHTO
E055-10 Conical plastic mould dia. 70/80 h 40 mm (E
