| Model |
Viscolead ADV |
|---|---|
| Standard |
BS:6075, 5350, ISO:2555, 1652, ASTM:115, 789, 1076, 1084, 1286, 1417, 1439, 1638, 1824, 2196, 2336, 2364, 2393, 2556, 2669, 2849, 2983, 2994 , 3232, 3236, 3716 |

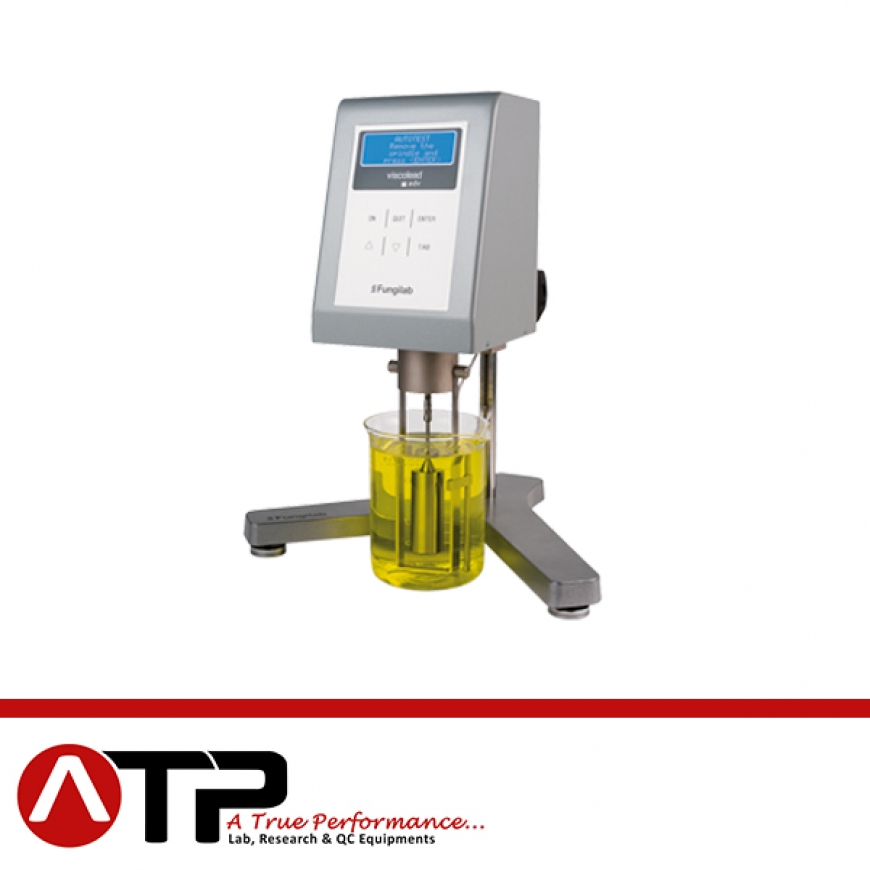

Viscolead ADV
Adv Series
Advance viscosity measurement. User friendly.
Features
Languages options
English / French / German / Catalan / Spanish / Italian / Japanese / Polish / Dutch / Portuguese
Data displayed
Selected speed
Selected spindle
Viscosity reading: cP (mPa·s) or cSt
Percentage of full scale Range (%)
Sample temperature: oC or oF (Optional)
Temperature reading by PT100
(optional)
Viscosity readings
Absolute viscosity (cP or mPa·s)
Apparent viscosity (cP or mPa·s)
kinematics viscosity (cSt, mm2/sec)
(Density introduced by the user)
USB interface
Faster tranfer data to the computer
Datalogger Software included
USB allows data transfer to a PC Excel format
Universal adapter
All accessories such as Brookfield (optional)
Spindles
AISI 316 stainless steel spindles, easily identified by number and letter when changed according to range of viscosity.
These are the standards our units follow: BS: 6075, 5350
ISO:2555,1652
ASTM: 115, 789, 1076, 1084, 1286, 1417, 1439, 1638, 1824, 2196, 2336, 2364, 2393, 2556, 2669, 2849, 2983, 2994, 3232, 3236, 3716
Rotational Viscometer Viscolead ADV.pdf
|
Code |
Model |
Measuring Range (cP) |
Speed (r.p.m) |
Number of speeds |
|
VL200003 |
ADV L |
*1 – 2.000.000 |
0.3 – 100 |
18 |
|
VL20002 |
ADV R |
100 – 13.000.000 |
0.3 – 100 |
18 |
|
VL200001 |
ADV H |
200 – 106.000.000 |
0.3 – 100 |
18 |
Standard Delivery
Viscometer head with serial number / Stand, 3 levelling adjustment for stand / Boss head / Standard spindles / Spindle
protector / Spindle rack / PT100 probe (optional) / Power supply cable / Datalogger software in a CD / USB cable / Carrying case / Calibration Certificate / Operating manual
