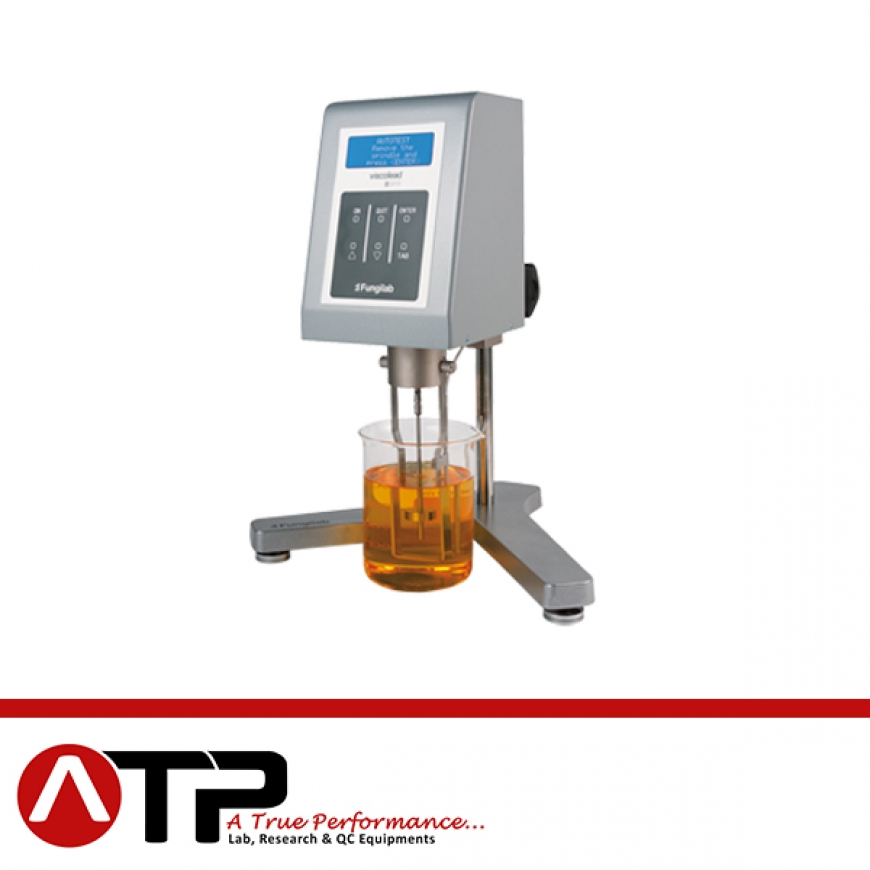

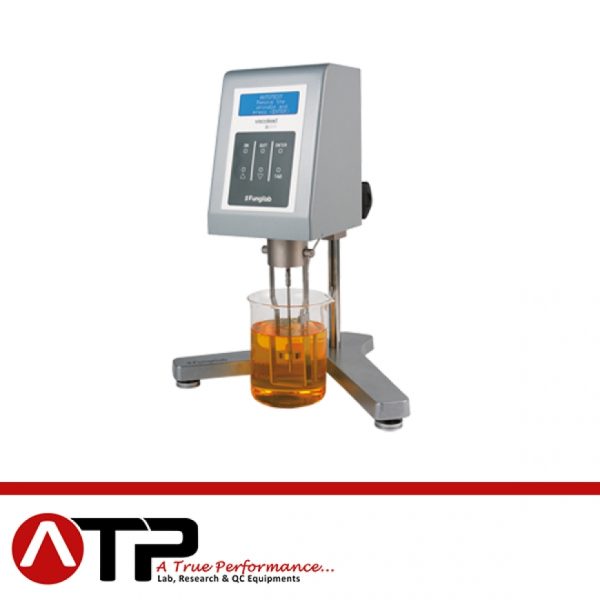

Viscolead Pro

Pro Series

Professional and Accurate viscosity results. Customize your measurement.

Features

Languages options
English / French / German / Catalan / Spanish / Italian / Japanese / Polish / Dutch / Portuguese

Program features
Time to torque
Time to stop
10 working memories
Customizable option (Speeds)
Programmable: Multistep/Ramp
Unit Converter (IS or CGS)

USB interface
Faster transfer data to the computer

Auto-test
It checks the internal function in order to make the unit ready to use

ViscOsity readings
Absolute viscosity (cP or mPa·s)
Apparent viscosity (cP or mPa·s)
Kinematic viscosity (cSt, mm2/sec)
(Density introduced by the user)

10 working memories
Set up the unit and get it ready to be used every day choosing the memory you need

Data displayed
Selected Speed
Selected Spindle
Viscosity readings (cP or mPa·s or cSt)
Percentage of Full Scale Range (%)
Sample Temperature (oC or oF)
Shear rate (with coaxial spindles) (s-1)
Shear Stress (with coaxial spindles) (N/m2)
Density (introduced by the user) (g/cm3)

Universal adapter
All accessories such as Brookfield (Optional)

Datalogger software included
USB allows data transfer to a Excel format

Spindles
AISI 316 stainless steel spindles, easily identified by number and letter when changed according to range of viscosity.

These are the standards our units follow:
BS: 6075, 5350
ISO: 2555, 1652
ASTM: 115, 789, 1076, 1084, 1286, 1417, 1439, 1638, 1824, 2196, 2336, 2364, 2393, 2556, 2669, 2849, 2983, 2994, 3232, 3236, 3716

Rotational Viscometer Viscolead PRO.pdf

Standard Delivery

Viscometer head with serial number / Stand, 3 levelling adjustment for stand / Boss head / Standard spindles / Spindle protector / Spindle rack / PT100 probe / Power supply cable / Datalogger software in CD / USB cable / Carrying case / Calibration Certificate / Operating manual
