| Model |
D-tect 150 SV |
|---|
wallscanner Professional
Detector

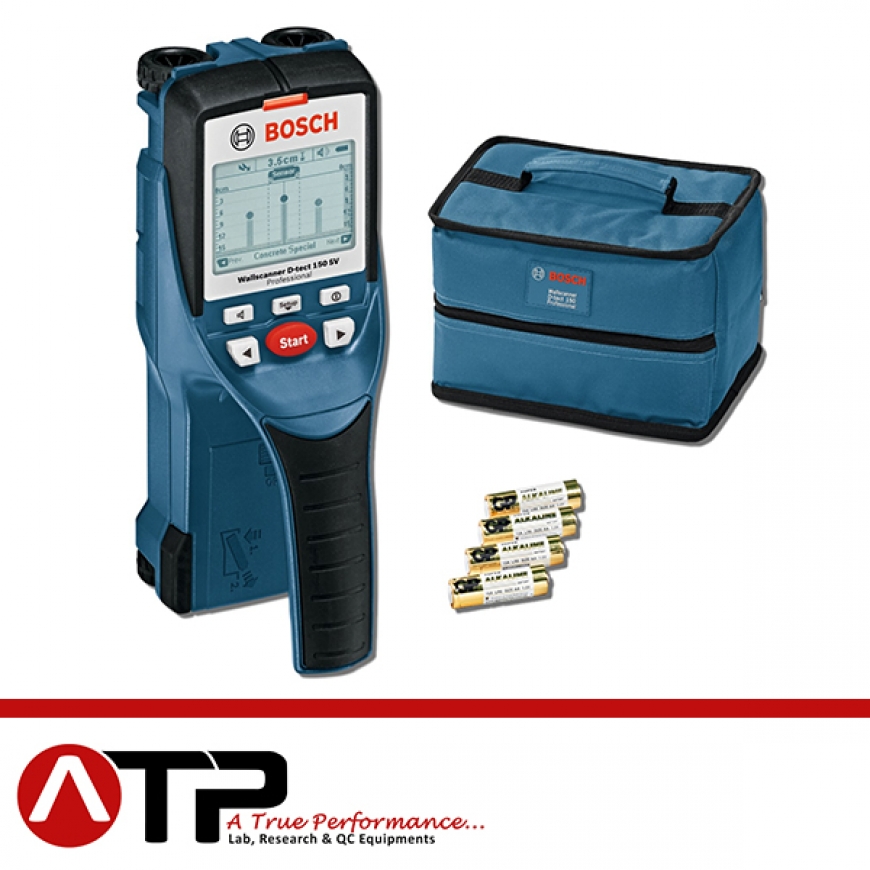

Bosch D-tect 150 SV wallscanner Professional
The specialist for finding objects in difficult conditions
- 1 Unique: reliable detection of objects in damp concrete
- 2 Millimetre-accurate detection of ferrous/non-ferrous metals, live cables, wooden studs and plastic pipes
- 3 Digital display of material properties
D-tect 150 SV wallscanner Professional comes complete with:
|
Protective bag |
|
|
Quick-start card |
|
|
4 x 1.5 V LR6 |
AA |
Tool features
The actual object depth is displayed, making it easy to determine the actual level of concrete cover
The Signal View/SV displays objects that are very close together even more precisely
The specialist for finding reinforcements with three operating modes for concrete
Ruler View: measuring distances between objects, millimetre-accurate marking on the wall
Requires no calibration
Specification overview
|
Detectable materials |
Plastic pipes, ferrous metals, non-ferrous metals, wooden studs, live cables |
|
Max. detection depth |
150 mm |
|
Detection depth, steel, max. |
150 mm |
|
Detection depth, copper, max. |
150 mm |
|
Detection depth of live cables, max. |
60 mm |
|
Detection depth of wooden substructures, max. |
40 mm |
|
Accuracy |
± 5 mm |
|
Automatic deactivation facility, approx. |
5 minutes |
|
Power supply |
4 x 1.5 V LR6 (AA) |
|
Weight, approx. |
0.65 kg |
|
Dust and splash protection |
IP 54 |
|
Additional function |
Signal view, reliable measurements in damp concrete |
Additional information
