Water washout characteristics of lubricating grease

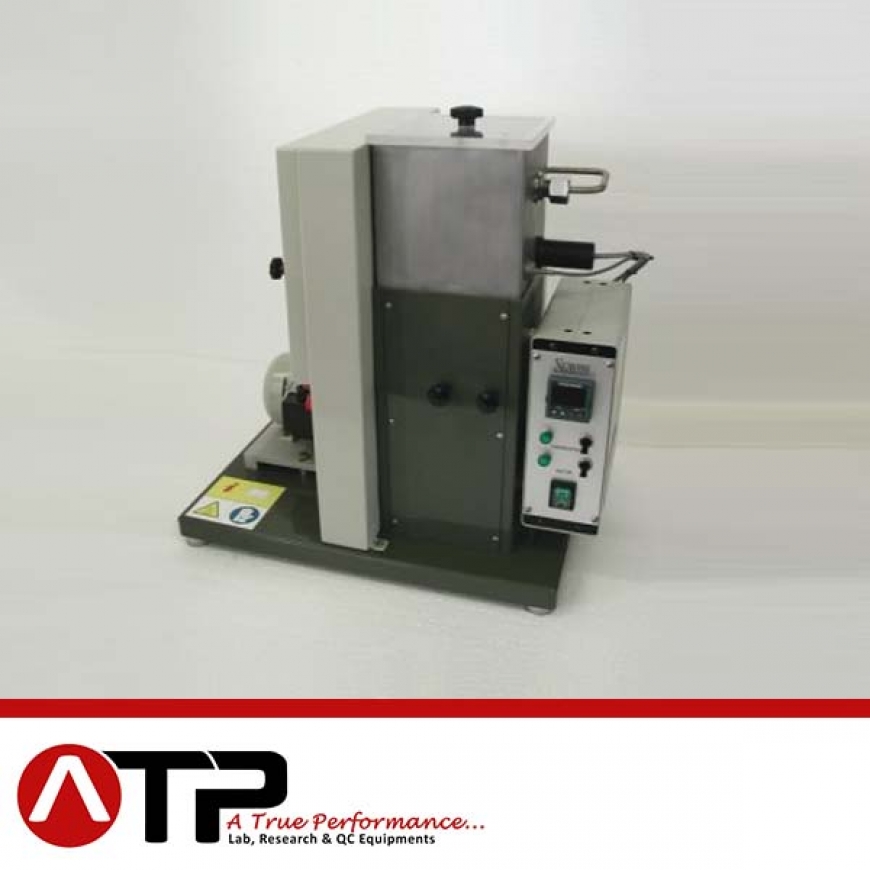

The apparatus consists of a benchtop case supporting the motor, the bath, the pump and the water pipes. All the electronics is contained in a control box fixed to the instrument body.

• Enamel finished benchtop steel case.
• Test bearing housing and shield manufactured exactly as specified in the method.
• Stainless steel reservoir complete with inlet and outlet lines, aluminium housing mount, chromium plated brass circulating pump, 1/4 HP electric driving motor with belts;
• Stainless steel cartridge heater.
• Microprocessor thermoregulator with built-in digital display 0.1°C accuracy. Probe: Pt100 RTD. Working range: from ambient to 100°C. Suitable for working at 37.8 ± 0.1°C and 79 ± 0.1°C;
• Motor and pulleys for operation at 600 ± 30 rpm;
• The motor and pulley arrangement permits to start the water pump without starting the bearing for water flow calibration;
• Regulation and by-pass valve to regulate the flow at 5 ± 0.5 ml/sec through a 1 mm capillary;
• English written user manual.
• For 220 V/50 Hz connections: 600 W power consumption;
• Dimensions: mm 400 x 400 x 600. Weight: 25 kg.
• CE marked.

AD1264-100        Apparatus

ACCESSORIES

CAL001                PT100 simulator

CAL002                Officially certified PT100 simulator

CONSUMABLES

AD1264-C00        Test bearing type 6204

TA015C-N00       ASTM 34C thermometer (+25°C/+105°C)
