| Model |
Zeitfuchs Cross-Arm |
|---|---|
| Standard |
ASTM D445 , ISO 3104 |

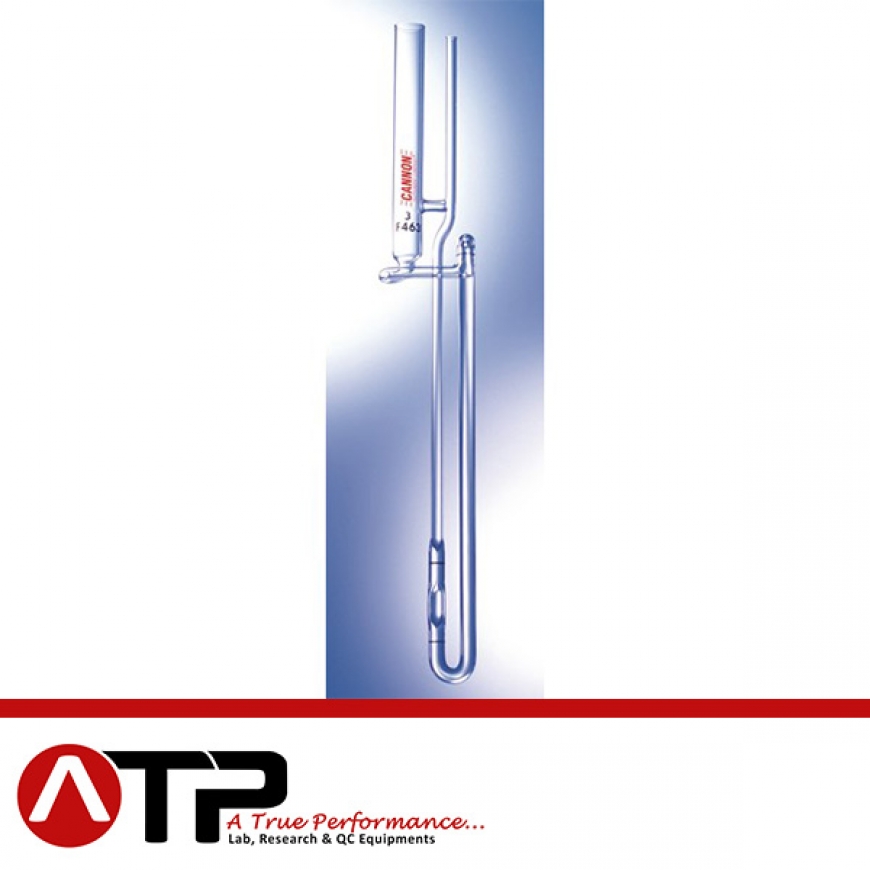

Zeitfuchs Cross-Arm Viscometer
Zeitfuchs Cross-Arm Viscometers
| Catalog Number | Size | Approximate Constant (mm²/s²) |
Viscosity Range (mm²/s)† | ||||||
|---|---|---|---|---|---|---|---|---|---|
| without holders | with round metal holders* | with rectangular metal holders** | Low | High | |||||
| Standard | Unity Factor | Standard | Unity Factor | Standard | Unity Factor | ||||
| 9723-S50 | 9723-U50 | 9723-W50 | 9721-Y50 | 9724-B50 | 9724-D50 | 1 | 0.003 | 0.6 | 2.0 |
| 9723-S53 | 9723-U53 | 9723-W53 | 9723-Y53 | 9724-B53 | 9724-D53 | 2 | 0.01 | 2.0 | 10 |
| 9723-S56 | 9723-U56 | 9723-W56 | 9723-Y56 | 9724-B56 | 9724-D56 | 3 | 0.03 | 6.0 | 30 |
| 9723-S59 | 9723-U59 | 9723-W59 | 9723-Y59 | 9724-B59 | 9724-D59 | 4 | 0.1 | 20 | 100 |
| 9723-S62 | 9723-U62 | 9723-W62 | 9723-Y62 | 9724-B62 | 9724-D62 | 5 | 0.3 | 60 | 300 |
| 9723-S65 | 9723-U65 | 9723-W65 | 9723-Y65 | 9724-B65 | 9724-D65 | 6 | 1.0 | 200 | 1000 |
| 9723-S68 | 9723-U68 | 9723-W68 | 9723-Y68 | 9724-B68 | 9724-D68 | 7 | 3.0 | 600 | 3000 |
| 9723-S71 | 9723-U71 | 9723-W71 | 9723-Y71 | 9724-B71 | 9724-D71 | 8 | 10 | 2000 | 10000 |
| 9723-S74 | 9723-U74 | 9723-W74 | 9723-Y74 | 9724-B74 | 9724-D74 | 9 | 30 | 6000 | 30000 |
| 9723-S77 | 9723-U77 | 9723-W77 | 9723-Y77 | 9724-B77 | 9724-D77 | 10 | 100 | 20000 | 100000 |
